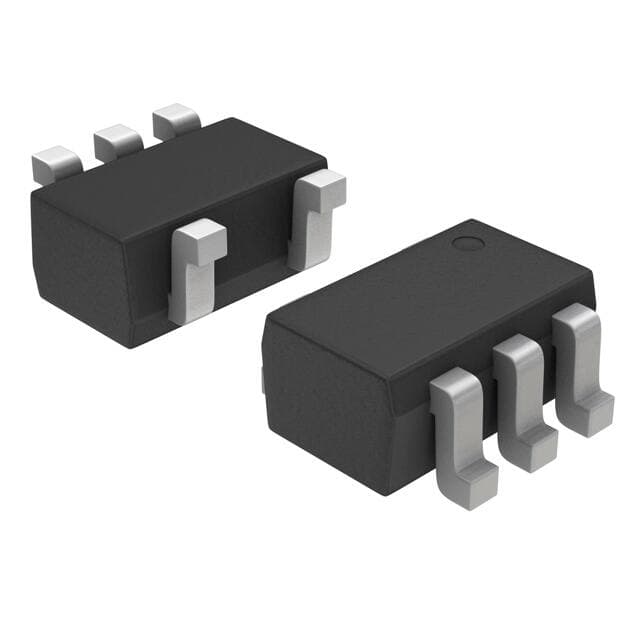

ON Semiconductor UMC5NT1G
ON Semiconductor UMC5NT1G

ON Semiconductor UMC5NT1G

Manufacturer No:

UMC5NT1G

Manufacturer:

ON Semiconductor

Package:

5-TSSOP, SC-70-5, SOT-353

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

UMC5NT1G information

ON Semiconductor UMC5NT1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor UMC5NT1G.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 5-TSSOP, SC-70-5, SOT-353
  • Surface Mount
  • YES
  • Number of Pins
  • 5
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 1998
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 5
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • BUILT-IN BIAS RESISTOR RATIO IS 1
  • Subcategory
  • BIP General Purpose Small Signal
  • Voltage - Rated DC
  • 50V
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 100mA
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Pin Count
  • 5
  • Number of Elements
  • 2
  • Polarity
  • PNP
  • Configuration
  • COMMON BASE, 2 ELEMENTS WITH BUILT-IN RESISTOR
  • Power Dissipation
  • 150mW
  • Transistor Application
  • SWITCHING
  • Breakdown Voltage
  • 50V
  • Transistor Type
  • 1 NPN, 1 PNP - Pre-Biased (Dual)
  • Collector Emitter Voltage (VCEO)
  • 50V
  • Collector Emitter Breakdown Voltage
  • 50V
  • Collector Base Voltage (VCBO)
  • 50V
  • hFE Min
  • 20
  • Collector Current-Max (IC)
  • 0.1A
  • DC Current Gain-Min (hFE)
  • 80
  • Continuous Collector Current
  • 100mA
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor UMC5NT1G.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Assembly/Origin:

ReachStatement:


UMC5NT1G                           Description



The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base?emitter resistor. These digital transistors are designed to replace a single device and its external resistor bias network. The BRT eliminates these individual components by integrating them into a single device. In the UMC2NT1G series, two complementary BRT devices are housed in the SOT?353 package which is ideal for low power surface mount applications where board space is at a premium.



UMC5NT1G                           Features


? Simplifies Circuit Design

? Reduces Board Space

? Reduces Component Count

? Available in 8 mm, 7 inch/3000 Unit Tape and Reel

? NSV Prefix for Automotive and Other Applications Requiring

Unique Site and Control Change Requirements; AEC?Q101

Qualified and PPAP Capable

? These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS

Compliant*



UMC5NT1G                            Applications

Photovoltaic inverters

· High frequency converters
