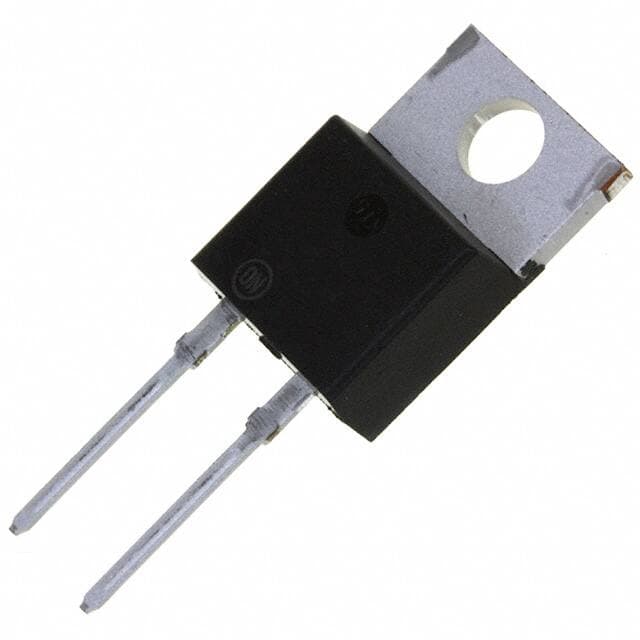

ON Semiconductor UD1006FR-H
Manufacturer No:
UD1006FR-H
Manufacturer:
Package:
TO-220-2
Description:
Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.3V @ 10A 150°C Max 100?A @ 600V 2-Termination Tube TO-220-2 Through Hole
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UD1006FR-H information
ON Semiconductor UD1006FR-H technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor UD1006FR-H.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 2 days ago)
- Factory Lead Time
- 4 Weeks
- Mounting Type
- Through Hole
- Package / Case
- TO-220-2
- Surface Mount
- NO
- Number of Pins
- 2
- Diode Element Material
- SILICON
- Packaging
- Tube
- Published
- 2012
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Max Operating Temperature
- 150°C
- Min Operating Temperature
- -55°C
- Pin Count
- 2
- Number of Elements
- 1
- Element Configuration
- Single
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Diode Type
- Standard
- Current - Reverse Leakage @ Vr
- 100?A @ 600V
- Case Connection
- ISOLATED
- Forward Current
- 10A
- Operating Temperature - Junction
- 150°C Max
- Max Surge Current
- 120A
- Application
- ULTRA FAST RECOVERY
- Halogen Free
- Halogen Free
- Max Reverse Voltage (DC)
- 600V
- Average Rectified Current
- 10A
- Number of Phases
- 1
- Reverse Recovery Time
- 150 ns
- Peak Reverse Current
- 100?A
- Max Repetitive Reverse Voltage (Vrrm)
- 600V
- Peak Non-Repetitive Surge Current
- 120A
- Recovery Time
- 100 ns
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ON Semiconductor UD1006FR-H.
Datasheets:
UD1006FR-H Overview
As a result, this device has a rectified current of 10A volts on average.Phase diode rectifier is permissible for forward current to reach 10A.There is no maximum value for 120A surge current.Based on the data charts in the datasheets, the peak reverse is 100?A.
UD1006FR-H Features
an average rectified current of 10A volts
the peak reverse is 100?A
UD1006FR-H Applications
There are a lot of ON Semiconductor
UD1006FR-H applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
