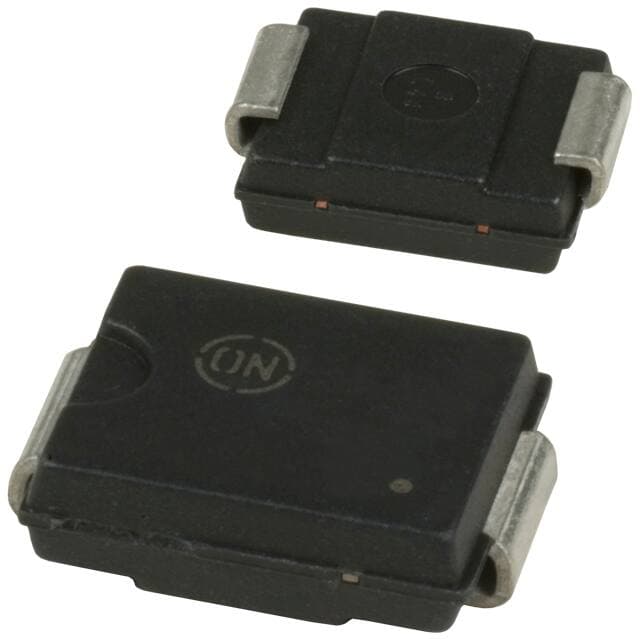

ON Semiconductor SURS8320T3G
Manufacturer No:
SURS8320T3G
Manufacturer:
Package:
DO-214AB, SMC
Description:
Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 875mV @ 3A -65°C~175°C 5?A @ 200V 2-Termination Tape & Reel (TR) DO-214AB, SMC Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SURS8320T3G information
ON Semiconductor SURS8320T3G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SURS8320T3G.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 1 day ago)
- Factory Lead Time
- 8 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- DO-214AB, SMC
- Surface Mount
- YES
- Number of Pins
- 2
- Diode Element Material
- SILICON
- Packaging
- Tape & Reel (TR)
- Published
- 2005
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- Max Operating Temperature
- 175°C
- Min Operating Temperature
- -65°C
- Additional Feature
- FREE WHEELING DIODE
- HTS Code
- 8541.10.00.80
- Subcategory
- Rectifier Diodes
- Terminal Position
- DUAL
- Terminal Form
- J BEND
- Base Part Number
- MURS320
- Reference Standard
- AEC-Q101
- Number of Elements
- 1
- Element Configuration
- Single
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Diode Type
- Standard
- Current - Reverse Leakage @ Vr
- 5?A @ 200V
- Voltage - Forward (Vf) (Max) @ If
- 875mV @ 3A
- Forward Current
- 4A
- Operating Temperature - Junction
- -65°C~175°C
- Max Surge Current
- 100A
- Output Current-Max
- 4A
- Application
- HIGH VOLTAGE ULTRA FAST RECOVERY POWER
- Halogen Free
- Halogen Free
- Forward Voltage
- 890mV
- Max Reverse Voltage (DC)
- 200V
- Average Rectified Current
- 3A
- Number of Phases
- 1
- Reverse Recovery Time
- 35 ns
- Peak Reverse Current
- 5?A
- Max Repetitive Reverse Voltage (Vrrm)
- 200V
- Peak Non-Repetitive Surge Current
- 100A
- Reverse Voltage
- 200V
- Max Forward Surge Current (Ifsm)
- 100A
Download datasheets and manufacturer documentation for ON Semiconductor SURS8320T3G.
SURS8320T3G Overview
Phase diode rectifier is reasonable to reverse the voltage to 200V.This device's average rectified current is zero volts.A forward current of 4A is allowed.Surge currents are limited to 100A.In terms of output current, the maximum value is 4A.The datasheets show a peak reverse of 5?A, as shown in the data chart.
SURS8320T3G Features
an average rectified current of 3A volts
4A is the maximum value
the peak reverse is 5?A
SURS8320T3G Applications
There are a lot of ON Semiconductor
SURS8320T3G applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
