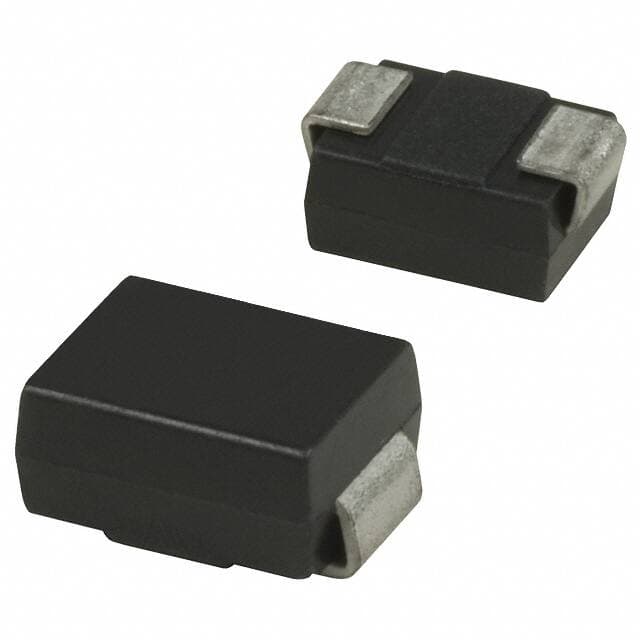

ON Semiconductor SS23
ON Semiconductor SS23

ON Semiconductor SS23

Manufacturer No:

SS23

Manufacturer:

ON Semiconductor

Package:

DO-214AA, SMB

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 500mV @ 2A -65°C~125°C 400?A @ 30V 2-Termination Tape & Reel (TR) DO-214AA, SMB Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SS23 information

ON Semiconductor SS23 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS23.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 6 days ago)
  • Factory Lead Time
  • 9 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • DO-214AA, SMB
  • Number of Pins
  • 2
  • Weight
  • 180mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 30V
  • Terminal Form
  • C BEND
  • Current Rating
  • 2A
  • Base Part Number
  • SS23
  • Number of Elements
  • 1
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 400?A @ 30V
  • Power Dissipation
  • 1.3W
  • Output Current
  • 2A
  • Voltage - Forward (Vf) (Max) @ If
  • 500mV @ 2A
  • Forward Current
  • 2A
  • Max Reverse Leakage Current
  • 400?A
  • Operating Temperature - Junction
  • -65°C~125°C
  • Max Surge Current
  • 50A
  • Application
  • GENERAL PURPOSE
  • Forward Voltage
  • 500mV
  • Max Reverse Voltage (DC)
  • 30V
  • Average Rectified Current
  • 2A
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 400?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 30V

Download datasheets and manufacturer documentation for ON Semiconductor SS23.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

SS23 Overview


Phase diode rectifier produces a maximum reverse leakage current of 400?A volts.As a result, this device has a rectified current of 2A volts on average.A device like this produces no heat as a secondary effect of its primary operation.Phase diode rectifier is permissible for forward current to reach 2A.Fuse elements have an indefinite life expectancy of 2A, which is the maximum current that the fuse can carry for an indefinite period of time.There is no maximum value for 50A surge current.Based on the data charts in the datasheets, the peak reverse is 400?A.

SS23 Features


a maximal reverse leakage current of 400?A volts
an average rectified current of 2A volts
a current rating of 2A
the peak reverse is 400?A


SS23 Applications


There are a lot of ON Semiconductor
SS23 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
