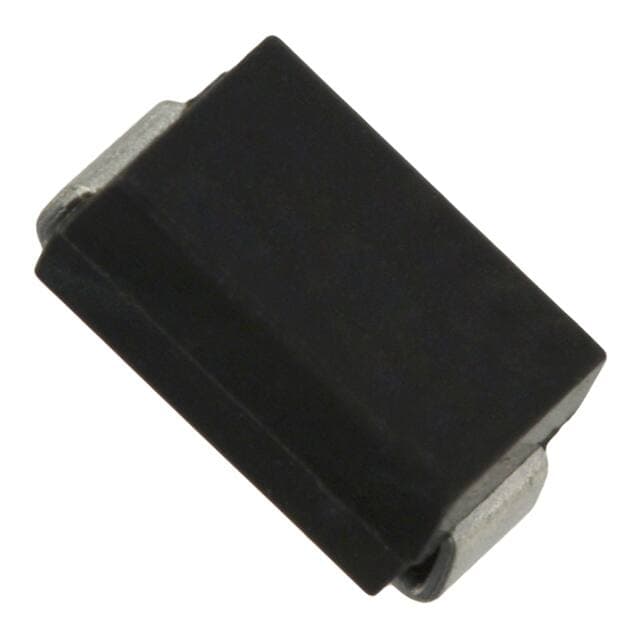

ON Semiconductor SS16
ON Semiconductor SS16

ON Semiconductor SS16

Manufacturer No:

SS16

Manufacturer:

ON Semiconductor

Package:

DO-214AC, SMA

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 700mV @ 1A -65°C~125°C 200?A @ 60V 2-Termination Tape & Reel (TR) DO-214AC, SMA Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SS16 information

ON Semiconductor SS16 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS16.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 1 day ago)
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • DO-214AC, SMA
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2001
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 60V
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 1A
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Base Part Number
  • SS16
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Polarity
  • Standard
  • Voltage
  • 60V
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Current
  • 1A
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 200?A @ 60V
  • Output Current
  • 1A
  • Voltage - Forward (Vf) (Max) @ If
  • 700mV @ 1A
  • Forward Current
  • 1A
  • Max Reverse Leakage Current
  • 200?A
  • Operating Temperature - Junction
  • -65°C~125°C
  • Max Surge Current
  • 40A
  • Forward Voltage
  • 700mV
  • Max Reverse Voltage (DC)
  • 60V
  • Average Rectified Current
  • 1A
  • Peak Reverse Current
  • 200?A

Download datasheets and manufacturer documentation for ON Semiconductor SS16.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

SS16 Overview


Phase diode rectifier is reasonable to reverse the voltage to 60V.Reverse leakage current is maximally zero volts with this device.This device's average rectified current is zero volts.A forward current of 1A is allowed.As for rectifiers current rating, rectifier is 1A, which is the maximum current a fuse can carry wrectifierhout too much degradation.Surge currents are limited to 40A.The datasheets show a peak reverse of 200?A, as shown in the data chart.

SS16 Features


a maximal reverse leakage current of 200?A volts
an average rectified current of 1A volts
a current rating of 1A
the peak reverse is 200?A


SS16 Applications


There are a lot of ON Semiconductor
SS16 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode

User Guide
