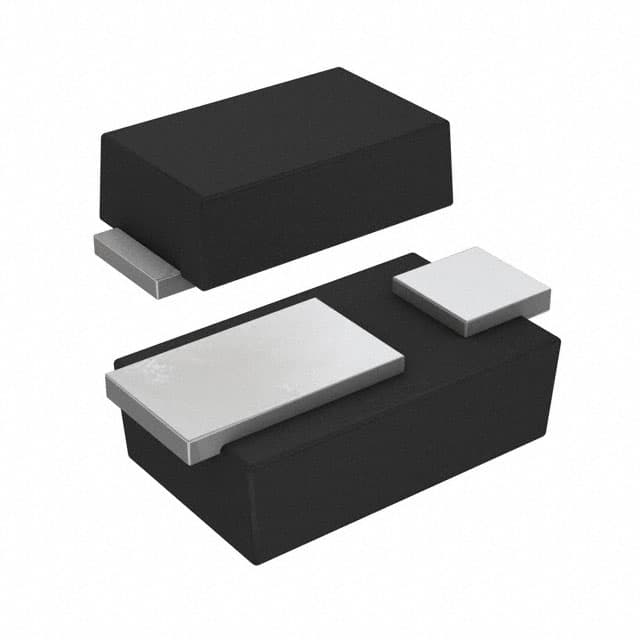

ON Semiconductor SS13HE
ON Semiconductor SS13HE

ON Semiconductor SS13HE

Manufacturer No:

SS13HE

Manufacturer:

ON Semiconductor

Package:

2-SMD, Flat Lead

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 550mV @ 1A -55°C~150°C 50?A @ 30V 2-Termination Tape & Reel (TR) 2-SMD, Flat Lead Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SS13HE information

ON Semiconductor SS13HE technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SS13HE.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 10 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 2-SMD, Flat Lead
  • Weight
  • 6mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Series
  • Automotive, AEC-Q101
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Additional Feature
  • LOW POWER LOSS
  • HTS Code
  • 8541.10.00.80
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • JESD-30 Code
  • R-PDSO-F2
  • Operating Temperature (Max)
  • 150°C
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 50?A @ 30V
  • Voltage - Forward (Vf) (Max) @ If
  • 550mV @ 1A
  • Case Connection
  • CATHODE
  • Forward Current
  • 1A
  • Operating Temperature - Junction
  • -55°C~150°C
  • Output Current-Max
  • 1A
  • Max Reverse Voltage (DC)
  • 30V
  • Average Rectified Current
  • 1A
  • Reverse Recovery Time
  • 5.6 ns
  • Max Repetitive Reverse Voltage (Vrrm)
  • 30V
  • Capacitance @ Vr, F
  • 55pF @ 4V 1MHz
  • Max Forward Surge Current (Ifsm)
  • 25A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ON Semiconductor SS13HE.

Datasheets:

PCN Design/Specification:

PCN Packaging:

ReachStatement:

SS13HE Overview


This device's average rectified current is zero volts.A forward current of 1A is allowed.In terms of output current, the maximum value is 1A.

SS13HE Features


an average rectified current of 1A volts
1A is the maximum value


SS13HE Applications


There are a lot of ON Semiconductor
SS13HE applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
