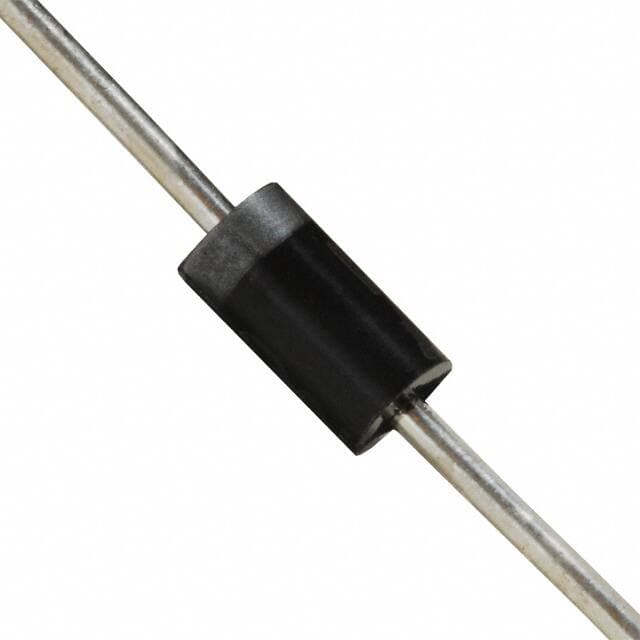

ON Semiconductor SB340
ON Semiconductor SB340

ON Semiconductor SB340

Manufacturer No:

SB340

Manufacturer:

ON Semiconductor

Package:

DO-201AD, Axial

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 500mV @ 3A -65°C~125°C 500?A @ 40V Tape & Reel (TR) DO-201AD, Axial Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SB340 information

ON Semiconductor SB340 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor SB340.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 13 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • DO-201AD, Axial
  • Number of Pins
  • 2
  • Supplier Device Package
  • DO-201AD
  • Weight
  • 360mg
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2001
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -65°C
  • Voltage - Rated DC
  • 40V
  • Current Rating
  • 3A
  • Base Part Number
  • SB340
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 500?A @ 40V
  • Output Current
  • 3A
  • Voltage - Forward (Vf) (Max) @ If
  • 500mV @ 3A
  • Max Reverse Leakage Current
  • 500?A
  • Operating Temperature - Junction
  • -65°C~125°C
  • Max Surge Current
  • 80A
  • Voltage - DC Reverse (Vr) (Max)
  • 40V
  • Current - Average Rectified (Io)
  • 3A
  • Forward Voltage
  • 500mV
  • Max Reverse Voltage (DC)
  • 40V
  • Average Rectified Current
  • 3A
  • Peak Reverse Current
  • 500?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 40V
  • Capacitance @ Vr, F
  • 180pF @ 4V 1MHz
  • Peak Non-Repetitive Surge Current
  • 80A
  • Max Forward Surge Current (Ifsm)
  • 80A
  • Diameter
  • 5.6mm
  • Height
  • 6.35mm
  • Length
  • 9.5mm
  • Width
  • 6.35mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor SB340.

Datasheets:

PCN Design/Specification:

PCN Packaging:

SB340 Overview


In this device, the maximum reverse leakage current is 500?A volts.The average rectified current for this device is 3A volts.When the forward current reaches 3A, it is allowed.Having a current rating of 3A, it can carry an indefinite amount of current without deterioration.The maximum surge current is 80A.A data chart shows that the peak reverse is 500?A in the datasheets.

SB340 Features


a maximal reverse leakage current of 500?A volts
an average rectified current of 3A volts
a current rating of 3A
the peak reverse is 500?A


SB340 Applications


There are a lot of ON Semiconductor
SB340 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
