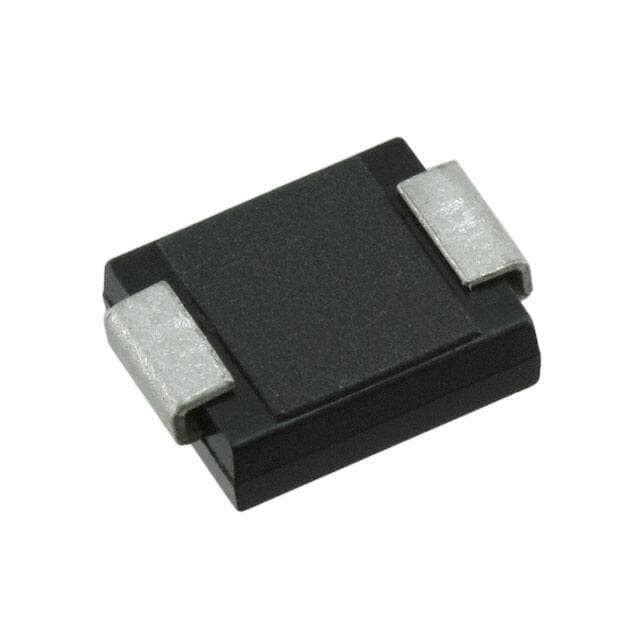

ON Semiconductor S3N
ON Semiconductor S3N

ON Semiconductor S3N

Manufacturer No:

S3N

Manufacturer:

ON Semiconductor

Package:

DO-214AB, SMC

Description:

Standard Diode Rectifier Standard Recovery >500ns, > 200mA (Io) 1.2V @ 3A -55°C~150°C 5?A @ 1200V 2-Termination Tape & Reel (TR) DO-214AB, SMC Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

S3N information

ON Semiconductor S3N technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor S3N.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 9 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • DO-214AB, SMC
  • Number of Pins
  • 2
  • Weight
  • 300mg
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2013
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Terminal Position
  • DUAL
  • Terminal Form
  • C BEND
  • Base Part Number
  • S3N
  • Element Configuration
  • Single
  • Speed
  • Standard Recovery >500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 5?A @ 1200V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.2V @ 3A
  • Forward Current
  • 3A
  • Operating Temperature - Junction
  • -55°C~150°C
  • Max Surge Current
  • 100A
  • Output Current-Max
  • 3A
  • Application
  • GENERAL PURPOSE
  • Voltage - DC Reverse (Vr) (Max)
  • 1200V
  • Forward Voltage
  • 1.2V
  • Max Reverse Voltage (DC)
  • 1.2kV
  • Average Rectified Current
  • 3A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 2.5 ?s
  • Peak Reverse Current
  • 5?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 1.2kV
  • Capacitance @ Vr, F
  • 60pF @ 4V 1MHz
  • Peak Non-Repetitive Surge Current
  • 100A
  • Reverse Voltage
  • 1.2kV
  • Max Forward Surge Current (Ifsm)
  • 100A
  • Recovery Time
  • 2.5 ?s

Download datasheets and manufacturer documentation for ON Semiconductor S3N.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

S3N Overview


A reasonable reverse voltage is 1.2kV.The average rectified current for this device is 3A volts.When the forward current reaches 3A, it is allowed.Objects and materials resist heat flow by their thermal resistance, and their natural thermal resistance is 13 °C/W.The maximum surge current is 100A.As far as output current is concerned, 3A is the maximum.A data chart shows that the peak reverse is 5?A in the datasheets.

S3N Features


an average rectified current of 3A volts
3A is the maximum value
the peak reverse is 5?A


S3N Applications


There are a lot of ON Semiconductor
S3N applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
