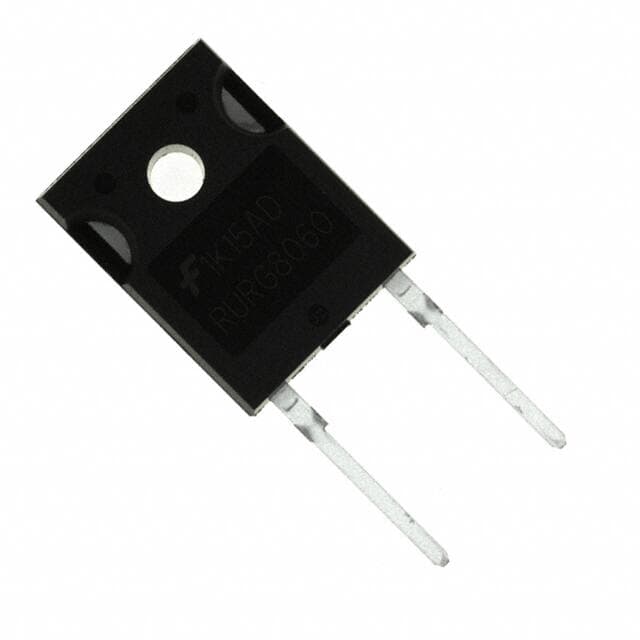

ON Semiconductor RURG8060
ON Semiconductor RURG8060

ON Semiconductor RURG8060

Manufacturer No:

RURG8060

Manufacturer:

ON Semiconductor

Package:

TO-247-2

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.6V @ 80A -65°C~175°C 250?A @ 600V 2-Termination Tube TO-247-2 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RURG8060 information

ON Semiconductor RURG8060 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor RURG8060.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 4 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-247-2
  • Number of Pins
  • 2
  • Weight
  • 6.33g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Published
  • 2002
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 600V
  • Technology
  • AVALANCHE
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 250?A @ 600V
  • Power Dissipation
  • 180W
  • Output Current
  • 80A
  • Voltage - Forward (Vf) (Max) @ If
  • 1.6V @ 80A
  • Case Connection
  • CATHODE
  • Forward Current
  • 80A
  • Operating Temperature - Junction
  • -65°C~175°C
  • Max Surge Current
  • 800A
  • Application
  • ULTRA FAST SOFT RECOVERY
  • Forward Voltage
  • 1.6V
  • Max Reverse Voltage (DC)
  • 600V
  • Average Rectified Current
  • 80A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 85 ns
  • Peak Reverse Current
  • 250?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Peak Non-Repetitive Surge Current
  • 800A
  • Reverse Voltage
  • 600V
  • Max Forward Surge Current (Ifsm)
  • 800A

Download datasheets and manufacturer documentation for ON Semiconductor RURG8060.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

RURG8060 Overview


Phase diode rectifier is reasonable to reverse the voltage to 600V.This device's average rectified current is zero volts.In addition to its primary function, this electronic or electrical device generates no heat.A forward current of 80A is allowed.As for rectifiers current rating, rectifier is 80A, which is the maximum current a fuse can carry wrectifierhout too much degradation.Surge currents are limited to 800A.The datasheets show a peak reverse of 250?A, as shown in the data chart.

RURG8060 Features


an average rectified current of 80A volts
a current rating of 80A
the peak reverse is 250?A


RURG8060 Applications


There are a lot of ON Semiconductor
RURG8060 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
