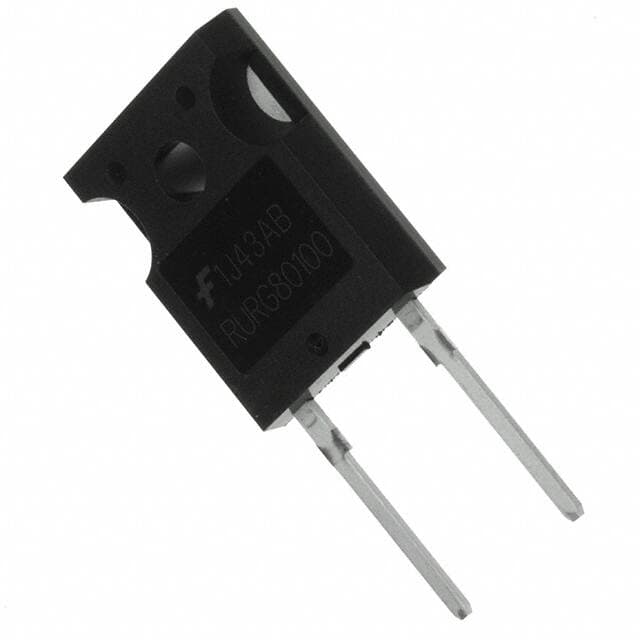

Manufacturer No:

RURG80100

Manufacturer:

ON Semiconductor

Package:

TO-247-2

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.9V @ 80A -65°C~175°C 250?A @ 1000V 2-Termination Tube TO-247-2 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RURG80100 information

ON Semiconductor RURG80100 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor RURG80100.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 4 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-247-2
  • Number of Pins
  • 2
  • Weight
  • 6.33g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Published
  • 2002
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Through Hole
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 1kV
  • Current Rating
  • 80A
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 250?A @ 1000V
  • Power Dissipation
  • 180W
  • Output Current
  • 80A
  • Voltage - Forward (Vf) (Max) @ If
  • 1.9V @ 80A
  • Case Connection
  • CATHODE
  • Forward Current
  • 80A
  • Operating Temperature - Junction
  • -65°C~175°C
  • Max Surge Current
  • 500A
  • Application
  • ULTRA FAST SOFT RECOVERY
  • Voltage - DC Reverse (Vr) (Max)
  • 1000V
  • Forward Voltage
  • 1.9V
  • Max Reverse Voltage (DC)
  • 1kV
  • Average Rectified Current
  • 80A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 200 ns
  • Peak Reverse Current
  • 250?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 1kV
  • Peak Non-Repetitive Surge Current
  • 500A

Download datasheets and manufacturer documentation for ON Semiconductor RURG80100.

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

RURG80100 Overview


Reverse voltages of 1kV are reasonable.A rectified current of 80A volts is averaged for this device.During its primary action, this device produces no heat.A value of 80A is the maximum forward current that can be allowed.This fuse has a current rating of 80A, which is the maximum current that will not deteriorate the fuse element over a long period.500A is the maximum value of surge current.As indicated by the data chart in the datasheets, the peak reverse is 250?A.

RURG80100 Features


an average rectified current of 80A volts
a current rating of 80A
the peak reverse is 250?A


RURG80100 Applications


There are a lot of ON Semiconductor
RURG80100 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
