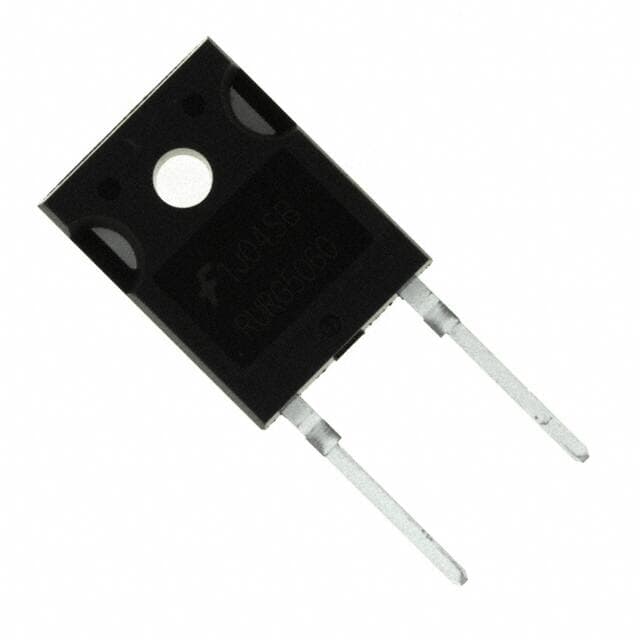

ON Semiconductor RURG5060
ON Semiconductor RURG5060

ON Semiconductor RURG5060

Manufacturer No:

RURG5060

Manufacturer:

ON Semiconductor

Package:

TO-247-2

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.6V @ 50A -65°C~175°C 250?A @ 600V 2-Termination Tube TO-247-2 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

RURG5060 information

ON Semiconductor RURG5060 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor RURG5060.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 4 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-247-2
  • Number of Pins
  • 2
  • Weight
  • 6.33g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Published
  • 2002
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 600V
  • Technology
  • AVALANCHE
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 250?A @ 600V
  • Power Dissipation
  • 150W
  • Output Current
  • 50A
  • Voltage - Forward (Vf) (Max) @ If
  • 1.6V @ 50A
  • Case Connection
  • CATHODE
  • Forward Current
  • 50A
  • Operating Temperature - Junction
  • -65°C~175°C
  • Max Surge Current
  • 500A
  • Application
  • ULTRA FAST SOFT RECOVERY
  • Forward Voltage
  • 1.6V
  • Max Reverse Voltage (DC)
  • 600V
  • Average Rectified Current
  • 50A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 75 ns
  • Peak Reverse Current
  • 250?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Peak Non-Repetitive Surge Current
  • 500A
  • Reverse Voltage
  • 600V
  • Max Forward Surge Current (Ifsm)
  • 500A

Download datasheets and manufacturer documentation for ON Semiconductor RURG5060.

Datasheets:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

RURG5060 Overview


There is no reason to reverse the voltage at 600V.Devices like this have an average rectified current of 50A volts.In the course of its primary operation, this electronic or electrical device produces 150W heat.There is no limit to the forward current value.Having a current rating of 50A means it can carry the maximum current an indefinite period without deterioration.Surge current can reach maximum value 500A.On the data sheets, the peak reverse is indicated by the data chart as 250?A.

RURG5060 Features


an average rectified current of 50A volts
a current rating of 50A
the peak reverse is 250?A


RURG5060 Applications


There are a lot of ON Semiconductor
RURG5060 applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
