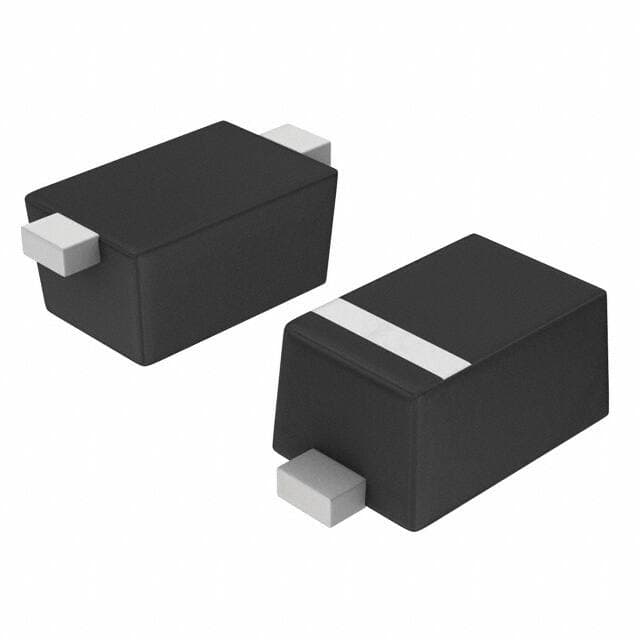

ON Semiconductor RB521S30T1G
ON Semiconductor RB521S30T1G

ON Semiconductor RB521S30T1G

Manufacturer No:

RB521S30T1G

Manufacturer:

ON Semiconductor

Package:

SC-79, SOD-523

Description:

Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 500mV @ 200mA -55°C~125°C 30?A @ 10V 2-Termination Tape & Reel (TR) SC-79, SOD-523 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

RB521S30T1G information

ON Semiconductor RB521S30T1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor RB521S30T1G.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 12 Weeks
  • Contact Plating
  • Tin
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-79, SOD-523
  • Surface Mount
  • YES
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2005
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.10.00.70
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 30V
  • Terminal Position
  • DUAL
  • Terminal Form
  • FLAT
  • Peak Reflow Temperature (Cel)
  • 260
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • RB521S30
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Polarity
  • Standard
  • Element Configuration
  • Single
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 30?A @ 10V
  • Power Dissipation
  • 200mW
  • Output Current
  • 200mA
  • Voltage - Forward (Vf) (Max) @ If
  • 500mV @ 200mA
  • Forward Current
  • 200mA
  • Max Reverse Leakage Current
  • 30?A
  • Operating Temperature - Junction
  • -55°C~125°C
  • Max Surge Current
  • 1A
  • Current - Average Rectified (Io)
  • 200mA DC
  • Forward Voltage
  • 500mV
  • Max Reverse Voltage (DC)
  • 30V
  • Average Rectified Current
  • 200mA
  • Peak Reverse Current
  • 30?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 30V
  • Peak Non-Repetitive Surge Current
  • 1A

Download datasheets and manufacturer documentation for ON Semiconductor RB521S30T1G.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Packaging:

ReachStatement:

RB521S30T1G Overview


A reverse leakage current of 30?A volts can be generated by this device.A rectified current of 200mA volts is averaged for this device.During its primary action, this device produces no heat.A value of 200mA is the maximum forward current that can be allowed.This fuse has a current rating of 200mA, which is the maximum current that will not deteriorate the fuse element over a long period.1A is the maximum value of surge current.As indicated by the data chart in the datasheets, the peak reverse is 30?A.

RB521S30T1G Features


a maximal reverse leakage current of 30?A volts
an average rectified current of 200mA volts
a current rating of 200mA
the peak reverse is 30?A


RB521S30T1G Applications


There are a lot of ON Semiconductor
RB521S30T1G applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
