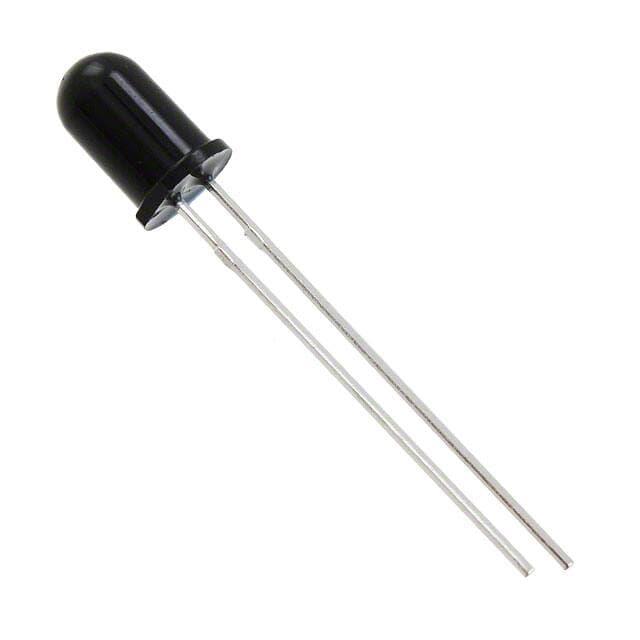

ON Semiconductor QSD2030F

Manufacturer No:

QSD2030F

Manufacturer:

ON Semiconductor

Package:

Radial, 5mm Dia (T 1 3/4)

Description:

Through Hole -40Â°C~100Â°C Bulk Wavelength: 880nm Radial, 5mm Dia (T 1 3/4) 1.55mm2 10nA

Quantity:

Delivery:

Payment:

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

QSD2030F information

ON Semiconductor QSD2030F technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor QSD2030F.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 15 hours ago)

Factory Lead Time
12 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, 5mm Dia (T 1 3/4)

Number of Pins
2

Weight
230.8mg

Shape
ROUND

Semiconductor Material
Silicon

Operating Temperature
-40Â°C~100Â°C

Packaging
Bulk

Published
2013

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Additional Feature
DAYLIGHT FILTER

Subcategory
Photo Diodes

Max Power Dissipation
100mW

Number of Functions
1

Configuration
SINGLE

Diode Type
PIN

Viewing Angle
40Â°

Forward Current
80mA

Size
5mm

Rise Time
5ns

Forward Voltage
1.3V

Fall Time (Typ)
5 ns

Max Reverse Voltage (DC)
50V

Wavelength
880nm

Reverse Voltage (DC)
50V

Dark Current
10nA

Spectral Range
700nm ~ 1100nm

Active Area
1.55mm2

Infrared Range
YES

Light Current-Nom
0.025mA

Diameter
6.1mm

Height
8.77mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor QSD2030F.

QSD2030F Overview

Photodiodes are enclosed in Bulk to prevent damage. Photodiodes are packaged in Radial, 5mm Dia (T 1 3/4) packages in order to ensure their safety. When reverse-biased, the photodiodes should not continually exceed 50V. Photodiodes have pins 2. There is a possibility that photodiodes could release 100mW heat within a circuit. An ideal circuit would allow the photodiodes to release a maximum amount of heat in the form of 100mW heat. A reverse voltage 50V does not affect the photodiodes in the DC circuit. Getting current to flow across a photodiode requires the voltage 1.3V. There is 10nA current flowing through a photodiode even in the absence of light input.

QSD2030F Features

Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40Â°C~100Â°C
Packaging: Bulk
Diode Type: PIN
Mount: Through Hole
Spectral Range: 700nm ~ 1100nm
Viewing Angle: 40Â°

QSD2030F Applications

There are a lot of ON Semiconductor
QSD2030F Photodiodes applications.

Machine Controls
Light Barriers
Vision Controls
Measurement Levelling
High speed photo detectors
Health Monitoring
Heart Rate Monitoring
Pulse Oximetry
Pure UV-C Monitoring
Sterilization Lamp Monitoring
