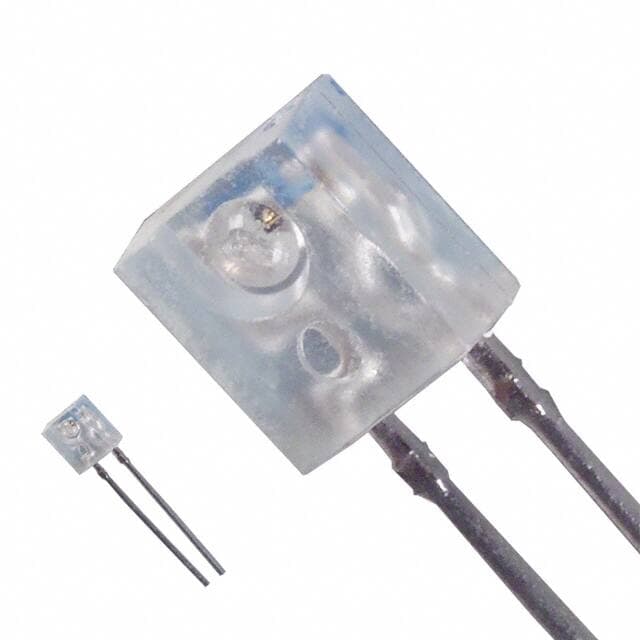

ON Semiconductor QEE123

Manufacturer No:

QEE123

Manufacturer:

ON Semiconductor

Package:

Radial, Side View

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

QEE123 information

ON Semiconductor QEE123 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor QEE123.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Factory Lead Time
4 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Side View

Number of Pins
2

Weight
135mg

Shape
ROUND

Operating Temperature
-40Â°C~100Â°C TA

Packaging
Bulk

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

ECCN Code
EAR99

Type
Infrared (IR)

Subcategory
Infrared LEDs

Power Rating
100mW

Voltage - Rated DC
5V

Orientation
Side View

Number of Functions
1

Depth
2.54mm

Operating Supply Voltage
1.5V

Number of Elements
1

Power Dissipation
100W

Voltage - Forward (Vf) (Typ)
1.7V

Viewing Angle
50Â°

Forward Current
100mA

Lens Style
Circular, Diffused

Test Current
100mA

Rise Time
900ns

Wavelength - Peak
880 nm

Reverse Voltage
5V

Current - DC Forward (If) (Max)
50mA

Reverse Voltage (DC)
5V

Radiant Intensity (Ie) Min @ If
8mW/sr @ 100mA

Height
5.08mm

Length
4.44mm

Width
2.54mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor QEE123.

The ON Semiconductor QEE123 is an infrared (IR) emitter designed for use in a variety of applications. It is a high-power, 880 nm, 50 mA radial emitter that is capable of producing a wide range of light intensities. The emitter is designed to be used in a variety of applications, including security systems, medical imaging, and industrial automation. It is also suitable for use in automotive, consumer electronics, and other applications.

Features of the QEE123 include a wide viewing angle, high power output, and low power consumption. The emitter is also designed to be highly reliable and durable, with a long life expectancy. It is also RoHS compliant and is available in a variety of packages.

The QEE123 is suitable for a variety of applications, including security systems, medical imaging, industrial automation, automotive, consumer electronics, and more. It is also suitable for use in a variety of lighting applications, such as LED lighting, automotive lighting, and more. The emitter is also suitable for use in a variety of other applications, such as machine vision, robotics, and more.
