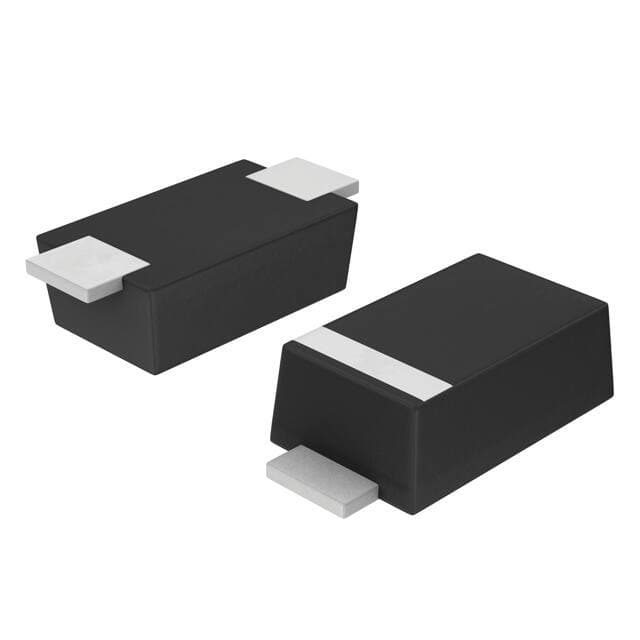

ON Semiconductor NTS260SFT3G
Manufacturer No:
NTS260SFT3G
Manufacturer:
Package:
SOD-123F
Description:
Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 650mV @ 2A -65°C~150°C 50?A @ 60V 2-Termination Tape & Reel (TR) SOD-123F Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NTS260SFT3G information
ON Semiconductor NTS260SFT3G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NTS260SFT3G.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 4 days ago)
- Factory Lead Time
- 7 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SOD-123F
- Diode Element Material
- SILICON
- Packaging
- Tape & Reel (TR)
- Published
- 2014
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- Max Operating Temperature
- 150°C
- Min Operating Temperature
- -65°C
- Additional Feature
- FREE WHEELING DIODE, LOW POWER LOSS, LOW LEAKAGE CURRENT
- Terminal Position
- DUAL
- Terminal Form
- FLAT
- Reach Compliance Code
- not_compliant
- JESD-30 Code
- R-PDSO-F2
- Number of Elements
- 1
- Element Configuration
- Single
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 50?A @ 60V
- Case Connection
- NONE
- Forward Current
- 2A
- Operating Temperature - Junction
- -65°C~150°C
- Output Current-Max
- 2A
- Application
- EFFICIENCY
- Forward Voltage
- 650mV
- Max Reverse Voltage (DC)
- 60V
- Average Rectified Current
- 2A
- Number of Phases
- 1
- Peak Reverse Current
- 50?A
- Max Repetitive Reverse Voltage (Vrrm)
- 60V
- Max Forward Surge Current (Ifsm)
- 25A
- Reverse Voltage (DC)
- 60V
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ON Semiconductor NTS260SFT3G.
Datasheets:
ReachStatement:
NTS260SFT3G Overview
As a result, this device has a rectified current of 2A volts on average.Phase diode rectifier is permissible for forward current to reach 2A.Using the output current as an example, 2A is the maximum value.Based on the data charts in the datasheets, the peak reverse is 50?A.
NTS260SFT3G Features
an average rectified current of 2A volts
2A is the maximum value
the peak reverse is 50?A
NTS260SFT3G Applications
There are a lot of ON Semiconductor
NTS260SFT3G applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
