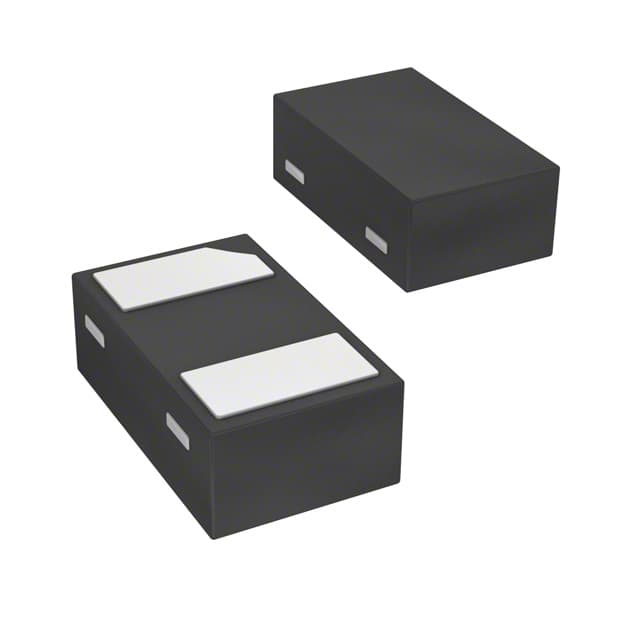

ON Semiconductor NSVR201MXT5G
Manufacturer No:
NSVR201MXT5G
Manufacturer:
Package:
2-XDFN
Description:
Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 320mV @ 1mA -55°C~150°C 10?A @ 2V Tape & Reel (TR) 2-XDFN Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NSVR201MXT5G information
ON Semiconductor NSVR201MXT5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NSVR201MXT5G.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 2 days ago)
- Factory Lead Time
- 4 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 2-XDFN
- Packaging
- Tape & Reel (TR)
- Series
- Automotive, AEC-Q101
- Published
- 2016
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 10?A @ 2V
- Voltage - Forward (Vf) (Max) @ If
- 320mV @ 1mA
- Forward Current
- 50mA
- Operating Temperature - Junction
- -55°C~150°C
- Voltage - DC Reverse (Vr) (Max)
- 2V
- Current - Average Rectified (Io)
- 50mA DC
- Capacitance @ Vr, F
- 0.15pF @ 0V 1MHz
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ON Semiconductor NSVR201MXT5G.
Datasheets:
ReachStatement:
NSVR201MXT5G Overview
Forward current is allowed to reach a value of zero.
NSVR201MXT5G Features
NSVR201MXT5G Applications
There are a lot of ON Semiconductor
NSVR201MXT5G applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
