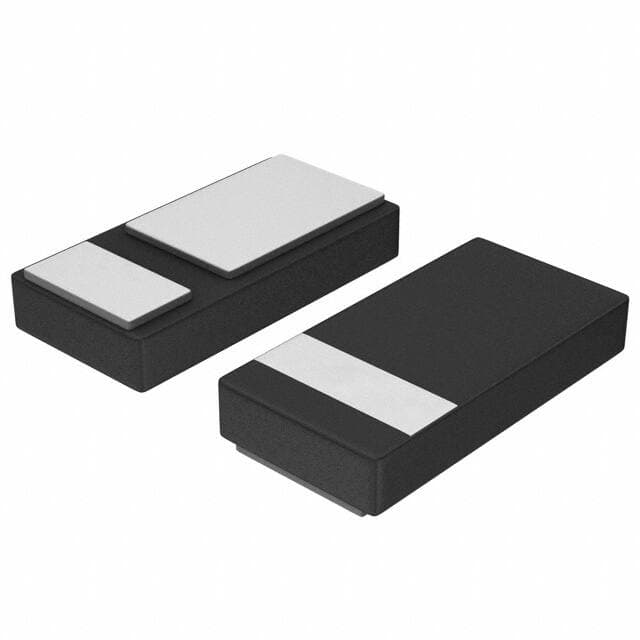

ON Semiconductor NSR05F30NRT5G
ON Semiconductor NSR05F30NRT5G

ON Semiconductor NSR05F30NRT5G

Manufacturer No:

NSR05F30NRT5G

Manufacturer:

ON Semiconductor

Package:

2-XDFN

Description:

Schottky Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 430mV @ 500mA 150°C Max 75?A @ 30V 2-Termination Tape & Reel (TR) 2-XDFN Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NSR05F30NRT5G information

ON Semiconductor NSR05F30NRT5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NSR05F30NRT5G.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 2-XDFN
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2010
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Rectifier Diodes
  • Max Power Dissipation
  • 1.3W
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • NO LEAD
  • Base Part Number
  • NSR05F30
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Voltage - Forward (Vf) (Max) @ If
  • 430mV @ 500mA
  • Forward Current
  • 500mA
  • Max Reverse Leakage Current
  • 75?A
  • Operating Temperature - Junction
  • 150°C Max
  • Max Surge Current
  • 10A
  • Output Current-Max
  • 0.5A
  • Current - Average Rectified (Io)
  • 500mA DC
  • Max Reverse Voltage (DC)
  • 30V
  • Average Rectified Current
  • 500mA
  • Peak Reverse Current
  • 75?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 30V
  • Peak Non-Repetitive Surge Current
  • 10A
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor NSR05F30NRT5G.

Datasheets:

ReachStatement:

NSR05F30NRT5G Overview


In this device, the maximum reverse leakage current is 75?A volts.The average rectified current for this device is 500mA volts.When the forward current reaches 500mA, it is allowed.Electrical and electronic devices produce the least 1.3W heat (energy loss).The maximum surge current is 10A.As far as output current is concerned, 0.5A is the maximum.A data chart shows that the peak reverse is 75?A in the datasheets.

NSR05F30NRT5G Features


a maximal reverse leakage current of 75?A volts
an average rectified current of 500mA volts
the least amount of 1.3W heat (energy loss)
0.5A is the maximum value
the peak reverse is 75?A


NSR05F30NRT5G Applications


There are a lot of ON Semiconductor
NSR05F30NRT5G applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
