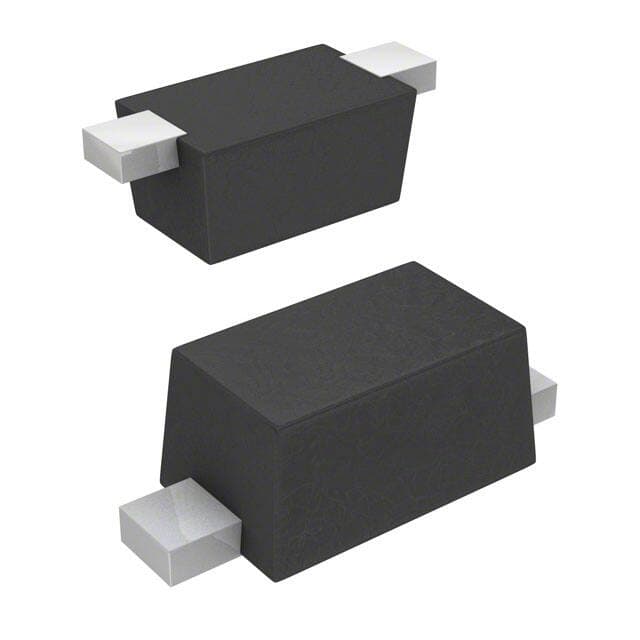

ON Semiconductor NSR0130M2T5G
Manufacturer No:
NSR0130M2T5G
Manufacturer:
Package:
SOD-723
Description:
Schottky Diode Rectifier Small Signal =< 200mA (Io), Any Speed 525mV @ 100mA -55°C~125°C 3?A @ 30V 2-Termination Tape & Reel (TR) SOD-723 Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NSR0130M2T5G information
ON Semiconductor NSR0130M2T5G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NSR0130M2T5G.
- Type
- Parameter
- Lifecycle Status
- LAST SHIPMENTS (Last Updated: 1 week ago)
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SOD-723
- Number of Pins
- 2
- Diode Element Material
- SILICON
- Packaging
- Tape & Reel (TR)
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Terminal Finish
- Tin (Sn)
- HTS Code
- 8541.10.00.70
- Voltage - Rated DC
- 30V
- Terminal Position
- DUAL
- Terminal Form
- FLAT
- Peak Reflow Temperature (Cel)
- NOT SPECIFIED
- Current Rating
- 100mA
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- NSR0130
- Pin Count
- 2
- Number of Elements
- 1
- Polarity
- Standard
- Configuration
- SINGLE
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 3?A @ 30V
- Output Current
- 100mA
- Voltage - Forward (Vf) (Max) @ If
- 525mV @ 100mA
- Operating Temperature - Junction
- -55°C~125°C
- Current - Average Rectified (Io)
- 100mA DC
- Max Reverse Voltage (DC)
- 30V
- Average Rectified Current
- 100mA
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ON Semiconductor NSR0130M2T5G.
Datasheets:
PCN Obsolescence/ EOL:
ReachStatement:
NSR0130M2T5G Overview
There is an average rectified current of 100mA volts for this device.Its current rating is 100mA, which is the maximum current that a fuse will carry for an indefinite period without too much deterioration of the fuse element.
