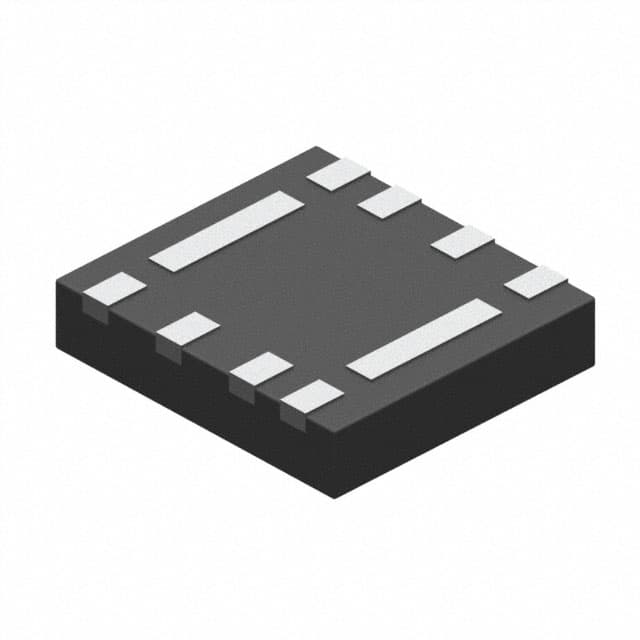

ON Semiconductor NSP8814MUTAG
Manufacturer No:
NSP8814MUTAG
Manufacturer:
Package:
8-UDFN Exposed Pad
Description:
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
NSP8814MUTAG information
ON Semiconductor NSP8814MUTAG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NSP8814MUTAG.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 3 days ago)
- Factory Lead Time
- 6 Weeks
- Mounting Type
- Surface Mount
- Package / Case
- 8-UDFN Exposed Pad
- Surface Mount
- YES
- Diode Element Material
- SILICON
- Operating Temperature
- -55°C~125°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 2017
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 8
- Type
- Steering (Rail to Rail)
- Terminal Finish
- Nickel/Palladium/Gold (Ni/Pd/Au)
- Applications
- Ethernet
- Additional Feature
- LOW CAPACITANCE
- Technology
- AVALANCHE
- Terminal Position
- DUAL
- JESD-30 Code
- R-PDSO-N8
- Number of Elements
- 4
- Polarity
- UNIDIRECTIONAL
- Power Line Protection
- No
- Current - Peak Pulse (10/1000?s)
- 35A 8/20?s
- Voltage - Clamping (Max) @ Ipp
- 15V
- Voltage - Reverse Standoff (Typ)
- 3V Max
- Unidirectional Channels
- 4
- Breakdown Voltage
- 3.5V
- Rep Pk Reverse Voltage-Max
- 3V
- Capacitance @ Frequency
- 5pF @ 1MHz Max
- Forward Voltage-Max
- 1.1V
- Reverse Current-Max
- 0.5?A
- Clamping Voltage-Max
- 15V
- Reverse Test Voltage
- 3V
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for ON Semiconductor NSP8814MUTAG.
Datasheets:
ReachStatement:
No product details available
