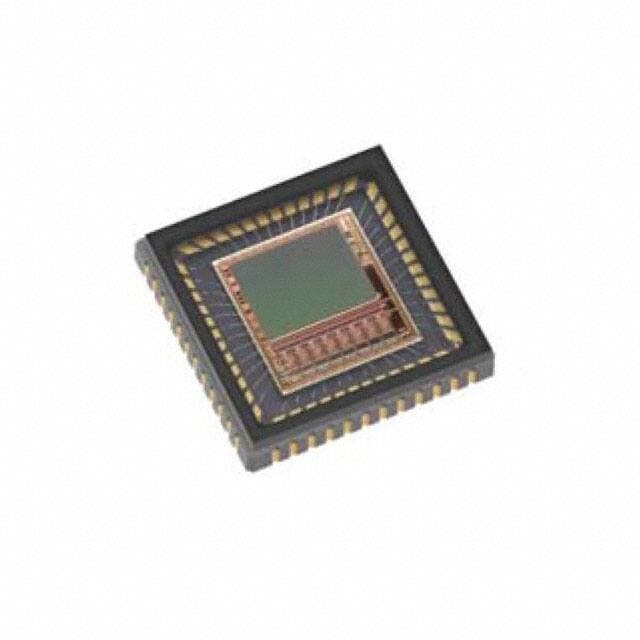

ON Semiconductor NOIP1SN1300A-QTI

Manufacturer No:

NOIP1SN1300A-QTI

Manufacturer:

ON Semiconductor

Package:

LCC

Description:

4.80x4.80?m 3 (168 Hours) LCC 60 dB

Quantity:

Delivery:

Payment:

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

NOIP1SN1300A-QTI information

ON Semiconductor NOIP1SN1300A-QTI technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NOIP1SN1300A-QTI.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
12 Weeks

Mount
Surface Mount

Package / Case
LCC

Number of Pins
48

Series
PYTHON

Published
2015

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Max Operating Temperature
85Â°C

Min Operating Temperature
-40Â°C

Additional Feature
IT ALSO OPERATES AT 3.2 TO 3.4 V SUPPLY VOLTAGE, GLOBAL SHUTTER

Body Length or Diameter
14.22mm

Body Breadth
14.22 mm

Supply Voltage-Max (Vsup)
1.9V

Supply Voltage-Min (Vsup)
1.7V

Termination Type
SOLDER

Sensors/Transducers Type
IMAGE SENSOR,CMOS

Output Interface Type
4-WIRE INTERFACE

Pixel Size
4.80x4.80?m

Dynamic Range
60 dB

Optical Format
1/2 inch

Horizontal Pixel Count
1280

Frame Rate
210 fps

Vertical Pixel
1024

Array Type
FRAME

Body Height
2.28mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor NOIP1SN1300A-QTI.

NOIP1SN1300A-QTI Overview

To ensure safety, image sensors are encapsulated in LCC packages. In order for the image sensor to work properly, its dynamic range should be 60 dB. 1/2 inch is the optical format of the image sensor, as specified. 48 pins are present on the image sensor. 1.9V is the maximum voltage image sensors can supply. It is recommended that the image sensors be set to 85Â°C at their maximum operating temperature. When image sensors are in operation, the temperature should not be below -40Â°C. However, image sensors should supply a voltage of 1.7V at minimum.

NOIP1SN1300A-QTI Features

Moisture Sensitivity Level (MSL): 3 (168 Hours)
Pixel Size: 4.80x4.80?m
Mount: Surface Mount
PYTHON Series
Master Clock: 72 MHz
Horizontal Pixel Count: 1280

NOIP1SN1300A-QTI Applications

There are a lot of ON Semiconductor NOIP1SN1300A-QTI Image Sensors applications.

Low cost seating position detection in cars
Temperature sensing element for
Bar Code Scanning
Visual IR thermometers
Machine Vision
Scanner for SLAM data acquisition in mobile robots
Door opening, machine controlling and safeguarding
Desktop Monitor cameras
Automatic vehicle guidance
Gesture control (man-machine interface)
