Manufacturer No:

NHPJ08S600G

Manufacturer:

ON Semiconductor

Package:

TO-220-2 Full Pack

Description:

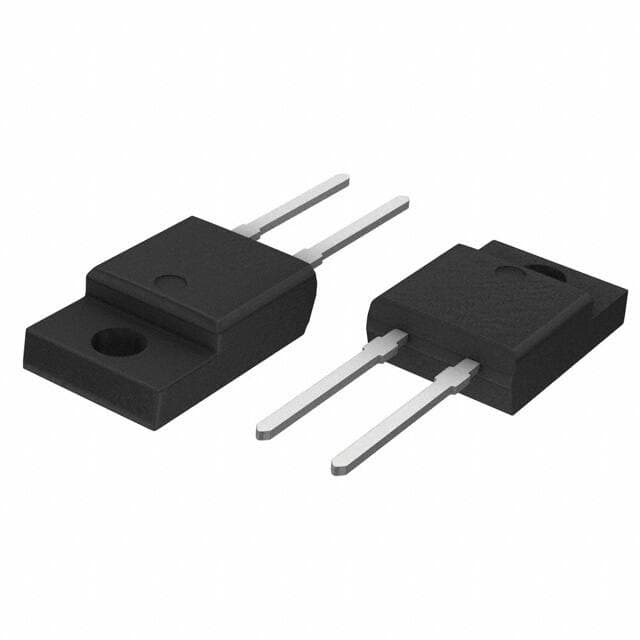

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 3.2V @ 8A -55°C~150°C 30?A @ 600V 2-Termination Tube TO-220-2 Full Pack Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NHPJ08S600G information

ON Semiconductor NHPJ08S600G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NHPJ08S600G.

  • Type
  • Parameter
  • Factory Lead Time
  • 13 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-220-2 Full Pack
  • Surface Mount
  • NO
  • Number of Pins
  • 2
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Published
  • 2014
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • LOW LEAKAGE CURRENT
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Pin Count
  • 2
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr
  • 30?A @ 600V
  • Voltage - Forward (Vf) (Max) @ If
  • 3.2V @ 8A
  • Case Connection
  • ISOLATED
  • Forward Current
  • 8A
  • Operating Temperature - Junction
  • -55°C~150°C
  • Max Surge Current
  • 80A
  • Output Current-Max
  • 8A
  • Application
  • HIGH VOLTAGE ULTRA FAST RECOVERY POWER
  • Halogen Free
  • Halogen Free
  • Forward Voltage
  • 3.2V
  • Max Reverse Voltage (DC)
  • 600V
  • Average Rectified Current
  • 8A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 50 ns
  • Peak Reverse Current
  • 30?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Peak Non-Repetitive Surge Current
  • 80A
  • Max Forward Surge Current (Ifsm)
  • 80A
  • Recovery Time
  • 50 ns
  • Reverse Voltage (DC)
  • 600V
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor NHPJ08S600G.

Datasheets:

NHPJ08S600G Overview


As a result, this device has a rectified current of 8A volts on average.Phase diode rectifier is permissible for forward current to reach 8A.There is no maximum value for 80A surge current.Using the output current as an example, 8A is the maximum value.Based on the data charts in the datasheets, the peak reverse is 30?A.

NHPJ08S600G Features


an average rectified current of 8A volts
8A is the maximum value
the peak reverse is 30?A


NHPJ08S600G Applications


There are a lot of ON Semiconductor
NHPJ08S600G applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
