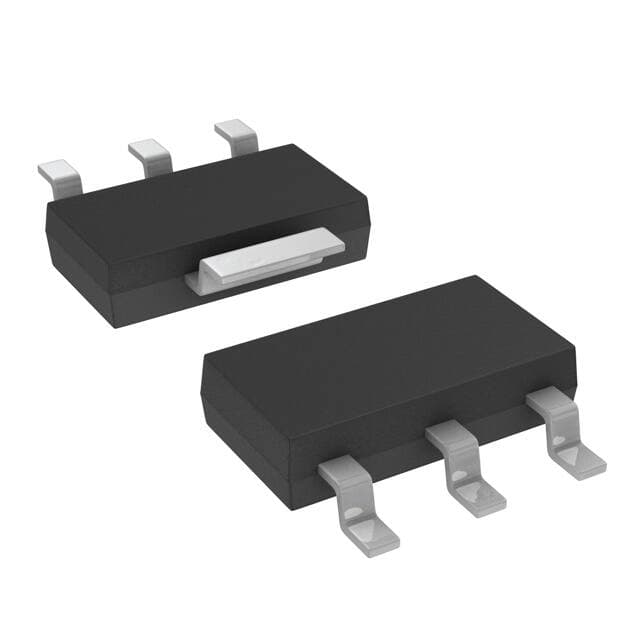

ON Semiconductor NCP1117LPST33T3G
ON Semiconductor NCP1117LPST33T3G

ON Semiconductor NCP1117LPST33T3G

Manufacturer No:

NCP1117LPST33T3G

Manufacturer:

ON Semiconductor

Package:

TO-261-4, TO-261AA

Description:

Fixed 2.3mm Tin NCP1117LPS PMIC 4 TO-261-4, TO-261AA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1117LPST33T3G information

ON Semiconductor NCP1117LPST33T3G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NCP1117LPST33T3G.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 17 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-261-4, TO-261AA
  • Number of Pins
  • 4
  • Operating Temperature
  • 0°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2006
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 4
  • ECCN Code
  • EAR99
  • Subcategory
  • Other Regulators
  • Packing Method
  • TAPE AND REEL
  • Technology
  • BIPOLAR
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Terminal Pitch
  • 2.3mm
  • Base Part Number
  • NCP1117LPS
  • Pin Count
  • 4
  • Number of Outputs
  • 1
  • Qualification Status
  • Not Qualified
  • Voltage - Input (Max)
  • 18V
  • Output Voltage
  • 3.3V
  • Output Type
  • Fixed
  • Max Output Current
  • 1A
  • Max Supply Voltage
  • 18V
  • Min Supply Voltage
  • -300mV
  • Output Configuration
  • Positive
  • Quiescent Current
  • 700?A
  • Output Voltage 1
  • 3.3V
  • Number of Regulators
  • 1
  • Min Input Voltage
  • -300mV
  • Protection Features
  • Over Current, Over Temperature
  • Voltage Dropout (Max)
  • 1.4V @ 1A
  • Halogen Free
  • Halogen Free
  • PSRR
  • 60dB (120Hz)
  • Reference Voltage
  • 1.275V
  • Dropout Voltage
  • 1.3V
  • Dropout Voltage1-Nom
  • 1.3V
  • Min Output Voltage
  • 3.3V

Download datasheets and manufacturer documentation for ON Semiconductor NCP1117LPST33T3G.

Datasheets:

PCN Packaging:

NCP1117LPST33T3G Description


NCP1117LPST33T3G Low-Dropout Linear Voltage Regulator is the version with low power of the well-known NCP1117 family of voltage regulators with low dropouts that have a lower quiescent current. It is designed for consumer applications with high volumes within the 0 to 125 °C temperature range.


NCP1117LPST33T3G Features


Output Current in Excess of 1.0 A
1.4 V Maximum Dropout Voltage at 1 A
Quiescent Current over 10 times Lower than Traditional 1117
Adjustable Output Voltage Option
No Minimum Load Requirement for Fixed Voltage Output Devices


NCP1117LPST33T3G Applications


TV and Monitors
Set Top Boxes and Entertainment Devices
Switching Power Supply Post Regulation
Game Consoles and Consumer Applications

Hard Drive Controllers
