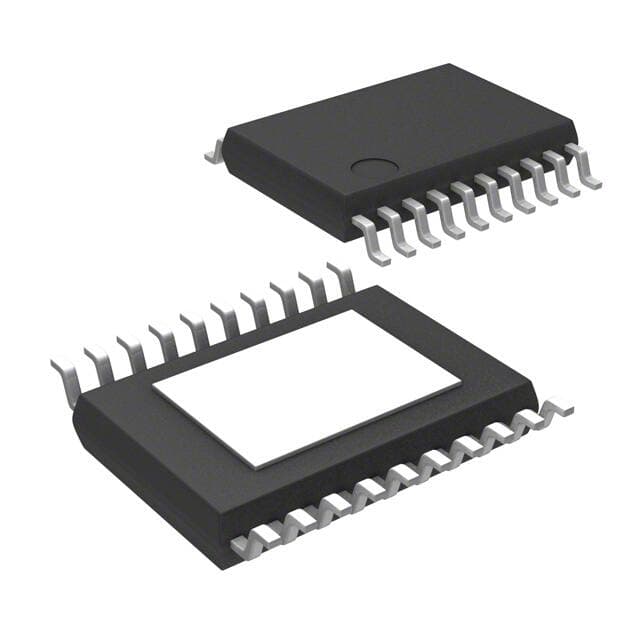

ON Semiconductor NCP1081DER2G

Manufacturer No:

NCP1081DER2G

Manufacturer:

ON Semiconductor

Package:

20-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

Tape & Reel (TR) 20-TSSOP (0.173, 4.40mm Width) Exposed Pad Controller (PD), DC/DC 1 -40Â°C~85Â°C 0V~57V NCP1081 20 DUAL 1

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

NCP1081DER2G information

ON Semiconductor NCP1081DER2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NCP1081DER2G.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 day ago)

Factory Lead Time
24 Weeks

Package / Case
20-TSSOP (0.173, 4.40mm Width) Exposed Pad

Surface Mount
YES

Number of Pins
20

Operating Temperature
-40Â°C~85Â°C

Packaging
Tape & Reel (TR)

Published
2008

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
20

ECCN Code
EAR99

Type
Controller (PD), DC/DC

Terminal Finish
Tin (Sn)

Subcategory
Switching Regulator or Controllers

Voltage - Supply
0V~57V

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Terminal Pitch
0.65mm

Frequency
500kHz

Base Part Number
NCP1081

Output Voltage
9V

Max Output Current
6.5mA

Number of Channels
1

Nominal Supply Current
510mA

Power - Max
40W

Topology
Flyback

Control Mode
CURRENT-MODE

Halogen Free
Halogen Free

Control Technique
PULSE WIDTH MODULATION

Rise Time
50ns

Fall Time (Typ)
50 ns

Nominal Input Voltage
57V

Switcher Configuration
SINGLE

Internal Switch(s)
Both

Standards
802.3at (PoE+), 802.3af (PoE)

Switching Frequency
500kHz

Duty Cycle
80 %

Auxiliary Sense
No

Length
6.5mm

Width
4.4mm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor NCP1081DER2G.

Datasheets:

onsemiconductor-ncp1081der2g-datasheets-5689.pdf

NCP1081DER2G Overview

The Tape & Reel (TR) package contains it.Packaged in the manner of 20-TSSOP (0.173, 4.40mm Width) Exposed Pad.PoE controller is a Controller (PD), DC/DC type electronic part.Strong/weak channels are increasing: 1.Reliability is ensured by operating PoE at -40Â°C~85Â°C.This electrical Po E controller operates at voltage 0V~57V.Base part numbers NCP1081 can be used to establish Po E controllers.A 20 termination corresponds to the practice of terminating a transmission line with an impedance-matching power over ethernet controller.It is capable of producing 40W Watts of power at its maximum.There are 20 pins on it.There is a Po E controller like this in Switching Regulator or Controllers.The 20 pins are designed into it.The frequency of this electrical PoE ethernet controller is 500kHz.This power over ethernet controller outputs 9V voltage.

NCP1081DER2G Features

Tape & Reel (TR) package
20 pin count
20 pins

NCP1081DER2G Applications

There are a lot of ON Semiconductor
NCP1081DER2G Power Over Ethernet (PoE) Controllers applications.

WLAN Access Points
Security Cameras
Internet Appliances
POS Terminals
IEEE 802.3af Compliant PoE Powered Devices
Non-Compliant, Application Specific Devices
Higher Power Ethernet Powered Devices
IP Phone Power Management
Wireless Access Points
Security Cameras
