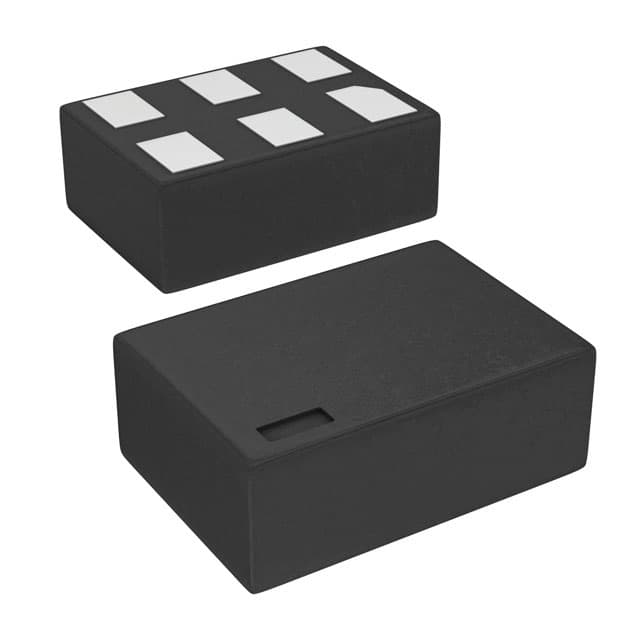

ON Semiconductor NC7SZ57L6X
ON Semiconductor NC7SZ57L6X

ON Semiconductor NC7SZ57L6X

Manufacturer No:

NC7SZ57L6X

Manufacturer:

ON Semiconductor

Package:

6-UFDFN

Description:

Configurable Multiple Function -40°C~85°C Multi-Functional Gate 7SZ Series 7SZ57 6 Pin 0.5mm 2.3V 6-UFDFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

NC7SZ57L6X information

ON Semiconductor NC7SZ57L6X technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor NC7SZ57L6X.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 13 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-UFDFN
  • Number of Pins
  • 6
  • Weight
  • 30g
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • 7SZ
  • Published
  • 2008
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Subcategory
  • Gates
  • Packing Method
  • TAPE AND REEL
  • Technology
  • CMOS
  • Voltage - Supply
  • 1.65V~5.5V
  • Terminal Position
  • BOTTOM
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 2.3V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 10
  • Base Part Number
  • 7SZ57
  • Output Type
  • Single-Ended
  • Supply Voltage-Max (Vsup)
  • 5.5V
  • Load Capacitance
  • 50pF
  • Propagation Delay
  • 6 ns
  • Quiescent Current
  • 1?A
  • Turn On Delay Time
  • 14.5 ns
  • Family
  • LVC/LCX/Z
  • Logic Function
  • Multi Function
  • Number of Inputs
  • 3
  • Current - Output High, Low
  • 32mA 32mA
  • Logic Type
  • Configurable Multiple Function
  • Max I(ol)
  • 0.024 A
  • Number of Gates
  • 1
  • Schmitt Trigger Input
  • No
  • Height
  • 500?m
  • Length
  • 1.45mm
  • Width
  • 1mm
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor NC7SZ57L6X.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

TechnicalDrawing:

ReachStatement:

NC7SZ57L6X Overview


The 6-UFDFN package. This package includes the Tape & Reel (TR) package as part of its contents. There is a version in Surface Mount available. There is full functionality in the Single-Ended output of this device. Configurable Multiple Function logic communication type is used. It is possible to extend the operating temperature at -40°C~85°C. A 3 input is included in it. In the 7SZ series, it is a product. Powered by 1.65V~5.5V, it runs on batteries. There are 6 terminations on the part. For more similar parts, search 7SZ57. Designed as a Surface Mount device, it is easy to install and remove. 6 solution for logic gates. Part 2.3V requires a normal voltage of 2.3V. From the LVC/LCX/Z product line, it is available. SpecialiGatesed needs are addressed by a Gates. An electrical current of 1?A flows across the device in quiescent state. Presented in a TAPE AND REEL package with a proper enclosure. Keeping the voltage at or below 5.5V will protect the device. In the compact package, 1 gates are included.

NC7SZ57L6X Features


Configurable Multiple Function logic device.
3 inputs.
1 gates.


NC7SZ57L6X Applications


There are a lot of ON Semiconductor
NC7SZ57L6X Multi-Functional Gates & Inverters applications.


  • DVD recorders and players
  • Desktop or notebook PCs
  • Digital radio or internet radio players
  • Digital video cameras (DVC)
  • Embedded PCs
  • GPS: personal navigation devices
  • Mobile internet devices
  • Network projector front-ends
  • Portable media players
  • Pro audio mixers
