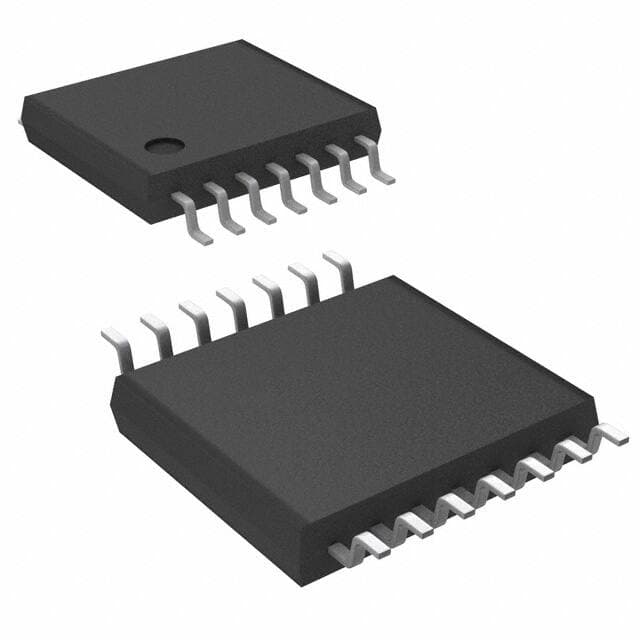

ON Semiconductor MC74LCX08DTR2G
Manufacturer No:
MC74LCX08DTR2G
Manufacturer:
Package:
14-TSSOP (0.173, 4.40mm Width)
Description:
3.3V V 5.5 ns ns 6.2 ns ns 5.1mm mm Gates & Inverters 24mA mA 1.05mm mm Surface Mount Surface Mount 2V~3.6V V 10?A ?A
Quantity:
Delivery:
Payment:
In Stock :100
Price not displayed? Please send an RFQ, and we will respond immediately.
MC74LCX08DTR2G information
ON Semiconductor MC74LCX08DTR2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC74LCX08DTR2G.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 3 days ago)
- Factory Lead Time
- 20 Weeks
- Contact Plating
- Gold
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 14-TSSOP (0.173, 4.40mm Width)
- Number of Pins
- 14
- Operating Temperature
- -40°C~85°C
- Packaging
- Tape & Reel (TR)
- Series
- 74LCX
- Published
- 2005
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 14
- ECCN Code
- EAR99
- Subcategory
- Gates
- Technology
- CMOS
- Voltage - Supply
- 2V~3.6V
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 4
- Terminal Pitch
- 0.65mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- 74LCX08
- Pin Count
- 14
- Number of Outputs
- 1
- Output Type
- TTL
- Supply Voltage-Max (Vsup)
- 3.6V
- Power Supplies
- 3.3V
- Supply Voltage-Min (Vsup)
- 2V
- Load Capacitance
- 50pF
- Output Current
- 24mA
- Propagation Delay
- 5.5 ns
- Quiescent Current
- 10?A
- Turn On Delay Time
- 6.2 ns
- Family
- LVC/LCX/Z
- Logic Function
- AND
- Number of Inputs
- 2
- Halogen Free
- Halogen Free
- Current - Output High, Low
- 24mA 24mA
- Logic Type
- AND Gate
- Number of Gates
- 4
- Max Propagation Delay @ V, Max CL
- 5.5ns @ 3.3V, 50pF
- Schmitt Trigger
- NO
Download datasheets and manufacturer documentation for ON Semiconductor MC74LCX08DTR2G.
Datasheets:
Environmental Information:
MC74LCX08DTR2G Overview
This part is conveniently packaged in 14-TSSOP (0.173, 4.40mm Width), making it easy to ship abroad. This high-reliability packaging method uses advanced packaging methods Tape & Reel (TR). AND Gate logic governs its operation. Voltage 2V~3.6V ensures the part's full functionality. Operation at a temperature around -40°C~85°C. A Surface Mount mount is used for this part. Current output is 24mA 24mA in both the high and low states. The number 74LCX refers to it. In total, there have been 14 terminations. A significant improvement in the user experience can be achieved by the part since it has 4 functions. There is a chip in this package that is a part of LVC/LCX/Z. Search with 74LCX08 if you are looking for device variants. An injection of 14 pins is performed into the body of the part. It is widely used in a variety of applications due to its Surface Mount mounting. To find out what the 14 pins do, please refer to the datasheets. As of 2, the part supports 2 inputs. Parts that are quiescent have 10?A current flowing through them. It is a typical Gates logic device. In this part, the load capacitance is 50pF. Supplying the device requires a minimum voltage of 2V. In this case, Vsup reaches its maximum value. Datasheets indicate that this part requires 3.3V power supply. Current output of the device is rated at 24mA. As part of the device, there are 1 outputs. An operation based on gates of 4. Part outputs as a TTL.
MC74LCX08DTR2G Features
AND Gate Logic Type
Operating Temperature: -40°C~85°C
LVC/LCX/Z Family
Quiescent Current: 10?A
Output Current: 24mA
4 Gates
MC74LCX08DTR2G Applications
There are a lot of ON Semiconductor
MC74LCX08DTR2G Gates and Inverters applications.
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
- Illumination
