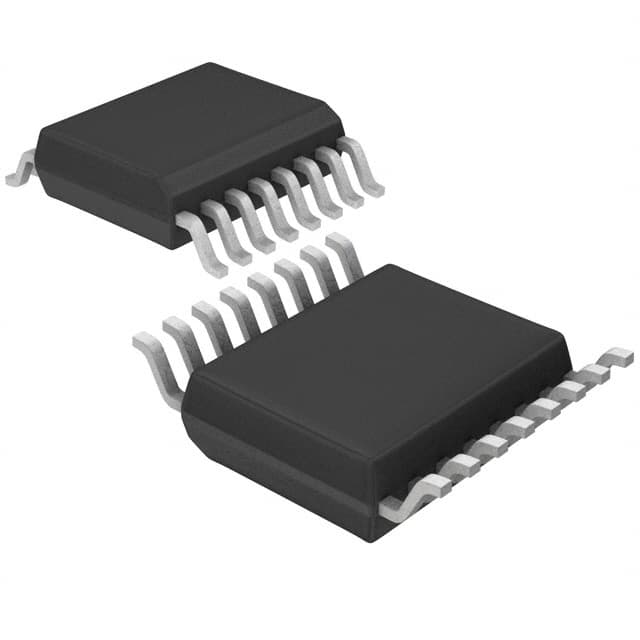

ON Semiconductor MC74HC4060ADTR2G
Manufacturer No:
MC74HC4060ADTR2G
Manufacturer:
Package:
16-TSSOP (0.173, 4.40mm Width)
Description:
3V CMOS DUAL Counters & Dividers 74HC Series 74HC4060 16 Pins Up Negative Edge 16-TSSOP (0.173, 4.40mm Width)
Quantity:
Delivery:
Payment:
In Stock :100
Price not displayed? Please send an RFQ, and we will respond immediately.
MC74HC4060ADTR2G information
ON Semiconductor MC74HC4060ADTR2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC74HC4060ADTR2G.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 5 days ago)
- Factory Lead Time
- 45 Weeks
- Contact Plating
- Gold
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-TSSOP (0.173, 4.40mm Width)
- Number of Pins
- 16
- Operating Temperature
- -55°C~125°C
- Packaging
- Tape & Reel (TR)
- Series
- 74HC
- Published
- 2006
- JESD-609 Code
- e4
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- Packing Method
- TAPE AND REEL
- Technology
- CMOS
- Voltage - Supply
- 2V~6V
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 3V
- Frequency
- 50MHz
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- 74HC4060
- Pin Count
- 16
- Supply Voltage-Max (Vsup)
- 6V
- Power Supplies
- 2/6V
- Supply Voltage-Min (Vsup)
- 2V
- Load Capacitance
- 50pF
- Propagation Delay
- 1 ?s
- Quiescent Current
- 4?A
- Turn On Delay Time
- 1 ?s
- Reset
- Asynchronous
- Family
- HC/UH
- Logic Function
- Counter
- Direction
- Up
- Halogen Free
- Halogen Free
- Logic Type
- Binary Counter
- Max I(ol)
- 0.004 A
- Number of Bits per Element
- 14
- Trigger Type
- Negative Edge
- Number of Input Lines
- 1
- Number of Output Lines
- 10
- fmax-Min
- 40 MHz
Download datasheets and manufacturer documentation for ON Semiconductor MC74HC4060ADTR2G.
Datasheets:
Environmental Information:
PCN Assembly/Origin:
RohsStatement:
MC74HC4060ADTR2G Overview
It is a device supplied in the 16-TSSOP (0.173, 4.40mm Width) package. 16 terminations are used for its configuration. The supply voltage of 3V enables it operate in a fully flexible way. The number of all component pins is 16. It is packaged in the way of Tape & Reel (TR). There are 16 pins going on to connect other parts in the circuit. The way of Surface Mount is used to mount it. It emerges as a member of HC/UH family. As a member of 74HC series, it is well suited for various applications. The logic type of Binary Counter is adopted. The operating temperature should be set at -55°C~125°C. It adopts a mounting type of Surface Mount. It is able to operate with higher reliability when the supply voltage of 2V~6V is provided. Each element in the array stores 14 bits. In terms of Pbfree code, the result may be yes. You can find more related parts under its base part number of 74HC4060. TAPE AND REEL is employed for its packing. There is 2/6V voltage comes from the voltage source. The minimum supply voltage (Vsup) is as low as 2V. It operates with the frequency of 50MHz. The maximum supply voltage (Vsup) is up to 6V. The current consumed is 4?A when there are no external factors. There are 1 input lines used to input binary data in the form of on/off signals. It is equipped with 10 output lines.
MC74HC4060ADTR2G Features
Embedded in the 16-TSSOP (0.173, 4.40mm Width) package
14 bits per element
Frequency of 50MHz
MC74HC4060ADTR2G Applications
There are a lot of ON Semiconductor
MC74HC4060ADTR2G Counters & Dividers applications.
- Control counters
- Timers
- Frequency dividers
- Time-delay circuits
- Analog multiplexing and demultiplexing
- Digital multiplexing and demultiplexing
- Signal gating
- Frequency dividing circuits
- Time delay circuits
- Communications Digital Frequency Synthesizers;
