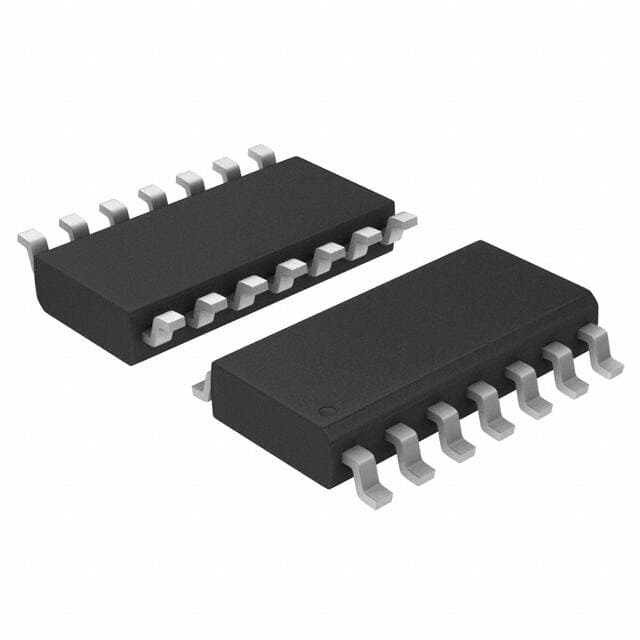

ON Semiconductor MC74HC125ADR2G
Manufacturer No:
MC74HC125ADR2G
Manufacturer:
Package:
14-SOIC (0.154, 3.90mm Width)
Description:
DUAL Buffer, Non-Inverting 2V~6V 3-State Buffers 74HC Series 74HC125 14 Pins 1 Bit per Element 7.8mA 7.8mA 14-SOIC (0.154, 3.90mm Width)
Quantity:
Delivery:
Payment:
In Stock :100
Price not displayed? Please send an RFQ, and we will respond immediately.
MC74HC125ADR2G information
ON Semiconductor MC74HC125ADR2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC74HC125ADR2G.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 3 days ago)
- Factory Lead Time
- 51 Weeks
- Contact Plating
- Tin
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 14-SOIC (0.154, 3.90mm Width)
- Number of Pins
- 14
- Operating Temperature
- -55°C~125°C TA
- Packaging
- Tape & Reel (TR)
- Series
- 74HC
- Published
- 2006
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 14
- ECCN Code
- EAR99
- Subcategory
- Bus Driver/Transceivers
- Packing Method
- TR
- Max Power Dissipation
- 500mW
- Technology
- CMOS
- Voltage - Supply
- 2V~6V
- Terminal Position
- DUAL
- Terminal Form
- GULL WING
- Number of Functions
- 4
- Supply Voltage
- 5V
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- 74HC125
- Pin Count
- 14
- Output Type
- 3-State
- Polarity
- Non-Inverting
- Supply Voltage-Max (Vsup)
- 6V
- Power Supplies
- 2/6V
- Supply Voltage-Min (Vsup)
- 2V
- Number of Channels
- 4
- Load Capacitance
- 50pF
- Number of Ports
- 2
- Propagation Delay
- 180 ns
- Quiescent Current
- 4?A
- Turn On Delay Time
- 180 ns
- Family
- HC/UH
- Logic Function
- Buffer, Inverting
- Halogen Free
- Halogen Free
- Current - Output High, Low
- 7.8mA 7.8mA
- Logic Type
- Buffer, Non-Inverting
- Max I(ol)
- 0.006 A
- Number of Bits per Element
- 1
Download datasheets and manufacturer documentation for ON Semiconductor MC74HC125ADR2G.
Environmental Information:
MC74HC125ADR2G Overview
Buffer uses a neat 14-SOIC (0.154, 3.90mm Width) package. This logic IC uses the Tape & Reel (TR) external packaging. This digital buffer is available in the Surface Mount mount. This is a typical Buffer, Non-Inverting logic integrated circuit that sees a broad field of applications. This network transceiver is fed with a supply voltage of 2V~6V. This automotive buffer is qualified to operate within the ambient temperature of -55°C~125°C TA. The high and low logic state output current of It is 7.8mA 7.8mA. Digital buffer can deal with 3-State output (s). It is one of the 74HC series transceivers. 14 terminations with different functions. It reuqires a supply voltage of 5V. This electronic component belongs to the HC/UH family. 14 pins are set with the electrical part. It is suitable for Surface Mount applications. It has 14 pins. Enhanced with 2 ports. The network transceiver employs 1 bits for each element. You can search 74HC125 for other related electronic component. Specifically, It is a kind of Bus Driver/Transceivers. In quiescent state, the electronic component uses 4?A. It is recommended to use a 2/6V power supply. It is generally sold in TR package. To supply the digital buffer, a minimum voltage of 2V is a must. This network transceiver has 4 channels for high quality communication. It is able to output 3 signal lines. Does the electronic component support schmitt trigger input? No. ENABLE LOW control technology starts up the logical driver.
