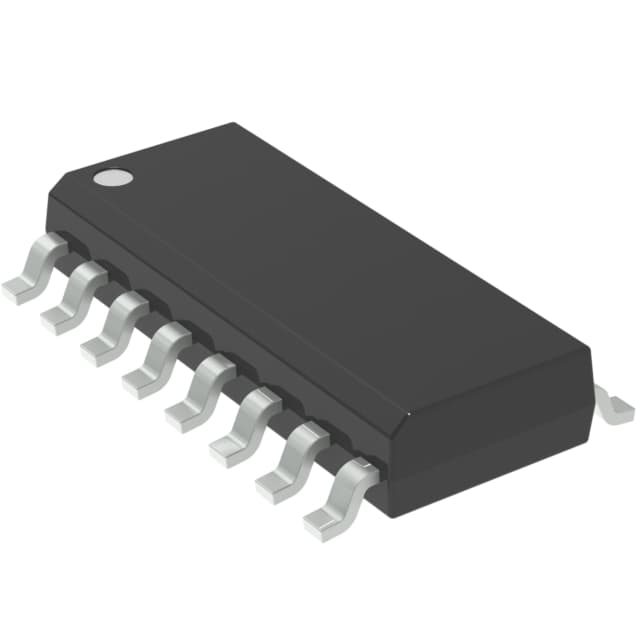

ON Semiconductor MC14511BDR2G

Manufacturer No:

MC14511BDR2G

Manufacturer:

ON Semiconductor

Package:

16-SOIC (0.154, 3.90mm Width)

Description:

Active DUAL 5V V Display Drivers ICs Tape & Reel (TR) Tin (Sn)

Quantity:

Delivery:

Payment:

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

MC14511BDR2G information

ON Semiconductor MC14511BDR2G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC14511BDR2G.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 day ago)

Factory Lead Time
2 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-SOIC (0.154, 3.90mm Width)

Number of Pins
16

Operating Temperature
-55Â°C~125Â°C

Packaging
Tape & Reel (TR)

Published
2005

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
16

ECCN Code
EAR99

Terminal Finish
Tin (Sn)

Technology
CMOS

Voltage - Supply
3V~18V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
5V

Time@Peak Reflow Temperature-Max (s)
40

Pin Count
16

Number of Outputs
7

Number of Elements
1

Polarity
Non-Inverting

Supply Voltage-Min (Vsup)
3V

Configuration
7 Segment

Interface
BCD

Operating Supply Current
10?A

Propagation Delay
1.44 ?s

Quiescent Current
20?A

Turn On Delay Time
1.44 ?s

Family
CMOS

Logic Function
Decoder, Latch

Number of Inputs
4

Halogen Free
Halogen Free

Logic IC Type
SEVEN SEGMENT DECODER/DRIVER

Display Type
LED, LCD, Vacuum Fluorescent (VF)

High Level Output Current
-25mA

Low Level Output Current
4.2mA

Input Conditioning
LATCHED

Length
9.9mm

Width
3.9mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for ON Semiconductor MC14511BDR2G.

Datasheets:

onsemiconductor-mc14511bfelg-datasheets-6540.pdf

Environmental Information:

onsemiconductor-mc14511bdr2g-environmentalinformation-2259.pdf

MC14511BDR2G Overview

Tape & Reel (TR)-like design has been used for the package.The package contains version 16-SOIC (0.154, 3.90mm Width), which includes it.I would like to point out that this electrical device has a LED, LCD, Vacuum Fluorescent (VF) display type.On this electronic component, Surface Mount is used for mounting.This electrical component operates at -55Â°C~125Â°C degrees Celsius.Providing that the power source is 3V~18VV, it should work.Using 16 terminations, transmission lines are terminated with devices that will match the characteristic impedance of the lines.A MC14511B device is one of those in the MC14511B family.The entire device is made up of 16 pins.As it is designed with 16 pins, it can be mounted on a variety of surfaces.The Surface Mount axis is the axis with which this electronic component is mounted on the board.Powered by a voltage of 5V, it is powered by a supply voltage of V.Display drivers is necessary to provide the 10?A wDisplay driversh a supply current in order for Display drivers to perform fully as intended.There is an output configuration of 7 on it.There are basically four elements that make up a 1 element.External influences have no impact as long as 20?A of quiescent current is consumed.It is equipped with a SEVEN SEGMENT DECODER/DRIVER logic IC.The electronic device in question belongs to the CMOS family.

MC14511BDR2G Features

16-SOIC (0.154, 3.90mm Width) package
MC14511B family
16 pin count
16 pins
7 output
1 elements

MC14511BDR2G Applications

There are a lot of ON Semiconductor
MC14511BDR2G display drivers applications.

Appliance control panels
Industrial Control Indicator
Relay Driver
Digital Clock, Thermometer, Counter, Voltmeter
Instrumentation Readouts
Instrumentation
Test Equipment
Hand Held Instruments
Bargraph Dlsplays
Numerlc and Non-Numerlc Panel Dlsplays
