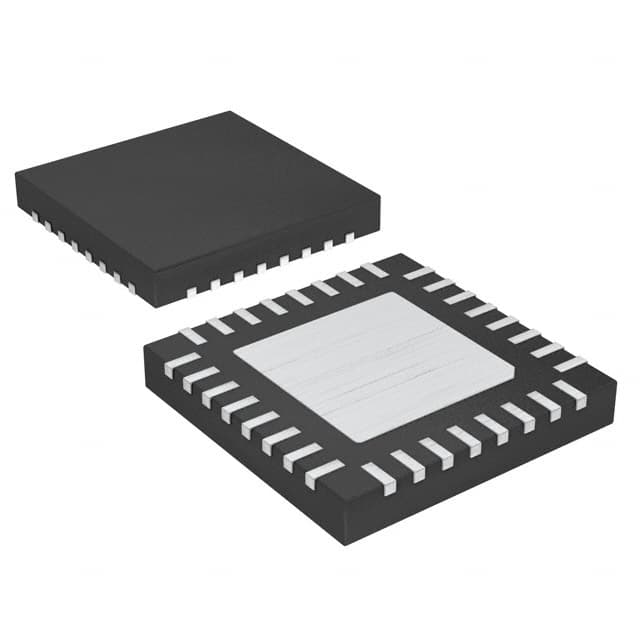

ON Semiconductor MC100EP195BMNG

Manufacturer No:

MC100EP195BMNG

Manufacturer:

ON Semiconductor

Package:

32-VFQFN Exposed Pad

Description:

-4.5V -40Â°C~85Â°C Multi-Functional Gate 100EP Series MC100EP195B 32 Pin 3.3V 32-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

MC100EP195BMNG information

ON Semiconductor MC100EP195BMNG technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MC100EP195BMNG.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Factory Lead Time
4 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
32-VFQFN Exposed Pad

Number of Pins
32

Operating Temperature
-40Â°C~85Â°C

Packaging
Tube

Series
100EP

Published
2006

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
32

Terminal Finish
Tin (Sn)

Additional Feature
NECL MODE: VCC=0 WITH VEE=-3.0 V TO -3.6 V

Subcategory
Delay Lines

Technology
ECL

Voltage - Supply
3V~3.6V

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Time@Peak Reflow Temperature-Max (s)
40

Function
Programmable

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
-4.5V

Supply Voltage-Min (Vsup)
3V

Propagation Delay
2.5 ns

Max Input Voltage
2.42V

Halogen Free
Halogen Free

Output Polarity
COMPLEMENTARY

Number of Taps/Steps
1024

Number of Independent Delays
1

Programmable Delay Line
YES

Available Total Delays
2.5ns ~ 13ns

Total Delay-Nom (td)
12.2 ns

Tap Increment
10ps

Length
5mm

Width
5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor MC100EP195BMNG.

MC100EP195BMNG Overview

The package is designed to be as cost-effective as possible by utilizing Tube. With the 32-VFQFN Exposed Pad package, additional insulating hardware in applications is no longer necessary. Providing reliable performance is made possible by the supply voltage of 3V~3.6V. As a mounting method, the technique Surface Mount is used. In addition, it is equipped with -40Â°C~85Â°C operating temperature. There are 1024 taps and steps configured for it. In a wide range of applications, parts with the same base part number MC100EP195B are universally preferred. QUAD is the position of the terminals. As part of its unique configuration, it is equipped with 32 terminations. In order to operate, a voltage supply of 3.3V is provided. A state-of-the-art ECL technology is used in its development. This category provides all the benefits of the subcategory Delay Lines. It can be operated with a supply voltage of 3V as a minimum. Using a maximum supply voltage of 3.6V is acceptable for it to operate. A Surface Mount mounting is used. Providing flexible power supplies is part of the design of -4.5V. Pins on the 32 axis are arranged in this design. As a result of its NECL MODE: VCC=0 WITH VEE=-3.0 V TO -3.6 V and other specific characteristics, it is well suited for a wide range of applications. There are several important electronic devices that belong to the 100EP series.
