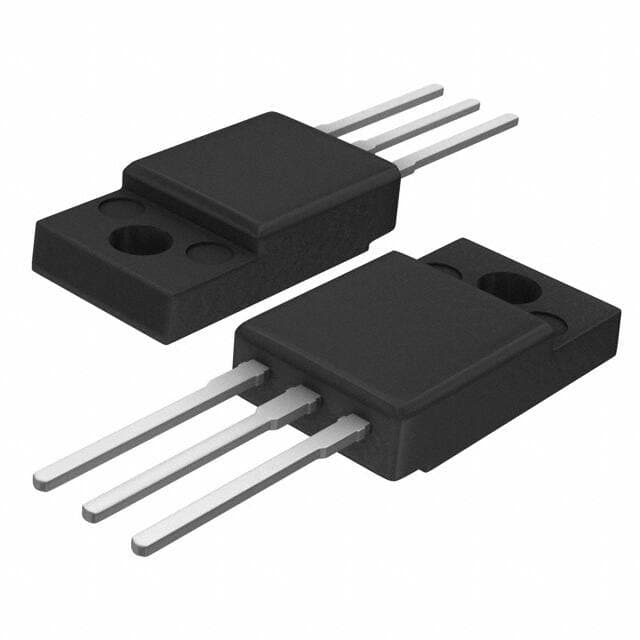

ON Semiconductor MBRF2545CT
Manufacturer No:
MBRF2545CT
Manufacturer:
Package:
TO-220-3 Full Pack
Description:
Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -65°C~175°C 12.5A 45V-DC TO-220-3 Full Pack Through Hole
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MBRF2545CT information
ON Semiconductor MBRF2545CT technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MBRF2545CT.
- Type
- Parameter
- Lifecycle Status
- LAST SHIPMENTS (Last Updated: 1 week ago)
- Mounting Type
- Through Hole
- Package / Case
- TO-220-3 Full Pack
- Number of Pins
- 3
- Supplier Device Package
- TO-220FP
- Packaging
- Tube
- Series
- SWITCHMODE?
- Published
- 2007
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Max Operating Temperature
- 175°C
- Min Operating Temperature
- -65°C
- Voltage - Rated DC
- 45V
- Current Rating
- 25A
- Base Part Number
- MBRF2545CT
- Element Configuration
- Common Cathode
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 200?A @ 45V
- Voltage - Forward (Vf) (Max) @ If
- 700mV @ 12.5A
- Forward Current
- 25A
- Max Reverse Leakage Current
- 200?A
- Operating Temperature - Junction
- -65°C~175°C
- Max Surge Current
- 150A
- Current - Average Rectified (Io)
- 12.5A
- Forward Voltage
- 700mV
- Max Reverse Voltage (DC)
- 45V
- Average Rectified Current
- 12.5A
- Peak Reverse Current
- 200?A
- Max Repetitive Reverse Voltage (Vrrm)
- 45V
- Peak Non-Repetitive Surge Current
- 150A
- Diode Configuration
- 1 Pair Common Cathode
- Max Forward Surge Current (Ifsm)
- 150A
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ON Semiconductor MBRF2545CT.
Datasheets:
ReachStatement:
MBRF2545CT Overview
Devices that have a forward voltage of 700mV will operate.Keeping the surge current under 150A and preventing it from exceeding it should be the rule.Devices that have a forward voltage of 25A will operate.Array is possible to draw current from the part of 25A.The reverse voltage peak of this device is 200?A.The maximum reverse leakage current from a semiconductor device when reverse biased is 200?A.
MBRF2545CT Features
700mV forward voltage
a peak voltage of 200?A
a reverse voltage peak of 200?A
MBRF2545CT Applications
There are a lot of ON Semiconductor
MBRF2545CT applications of rectifier diode array.
- Rectifier for drives applications
- Crowbar applications
- Rectifiers for UBS
- Battery chargers
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
- General Rectification
