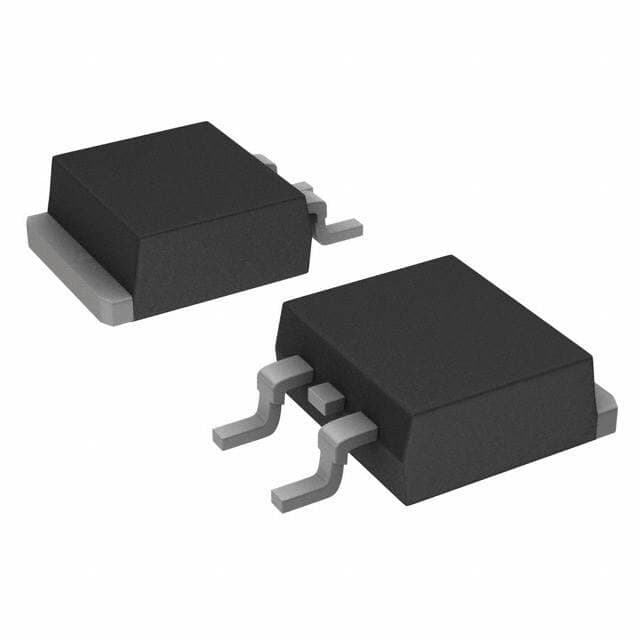

ON Semiconductor MBRB3030CTT4G
ON Semiconductor MBRB3030CTT4G

ON Semiconductor MBRB3030CTT4G

Manufacturer No:

MBRB3030CTT4G

Manufacturer:

ON Semiconductor

Package:

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Description:

Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~175°C 15A 30V-DC 2-Element TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

MBRB3030CTT4G information

ON Semiconductor MBRB3030CTT4G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MBRB3030CTT4G.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 15 hours ago)
  • Factory Lead Time
  • 2 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
  • Surface Mount
  • YES
  • Number of Pins
  • 3
  • Diode Element Material
  • SILICON
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SWITCHMODE?
  • Published
  • 2001
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -55°C
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Voltage - Rated DC
  • 30V
  • Terminal Position
  • SINGLE
  • Terminal Form
  • GULL WING
  • Current Rating
  • 30A
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • MBRB3030CT
  • Pin Count
  • 3
  • JESD-30 Code
  • R-PSSO-G2
  • Number of Elements
  • 2
  • Element Configuration
  • Common Cathode
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Schottky
  • Current - Reverse Leakage @ Vr
  • 600?A @ 30V
  • Voltage - Forward (Vf) (Max) @ If
  • 540mV @ 15A
  • Forward Current
  • 30A
  • Max Reverse Leakage Current
  • 600?A
  • Operating Temperature - Junction
  • -55°C~175°C
  • Max Surge Current
  • 200A
  • Application
  • POWER
  • Halogen Free
  • Halogen Free
  • Forward Voltage
  • 670mV
  • Max Reverse Voltage (DC)
  • 30V
  • Average Rectified Current
  • 15A
  • Number of Phases
  • 1
  • Peak Reverse Current
  • 600?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 30V

Download datasheets and manufacturer documentation for ON Semiconductor MBRB3030CTT4G.

PCN Design/Specification:

PCN Assembly/Origin:

MBRB3030CTT4G Overview


In the case of 670mV forward voltage, the device will operate.Array is important to monArrayor the surge current and make sure that Array does not exceed 200A.In the case of 30A forward voltage, the device will operate.From the part, a current of 30A can be drawn.Powered by reverse voltage, this device has a peak voltage of 600?A.This semiconductor device's maximal reverse leakage current is 600?A kA, which is its reverse leakage current when reverse biased.

MBRB3030CTT4G Features


670mV forward voltage
a peak voltage of 600?A
a reverse voltage peak of 600?A


MBRB3030CTT4G Applications


There are a lot of ON Semiconductor
MBRB3030CTT4G applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification

User Guide
