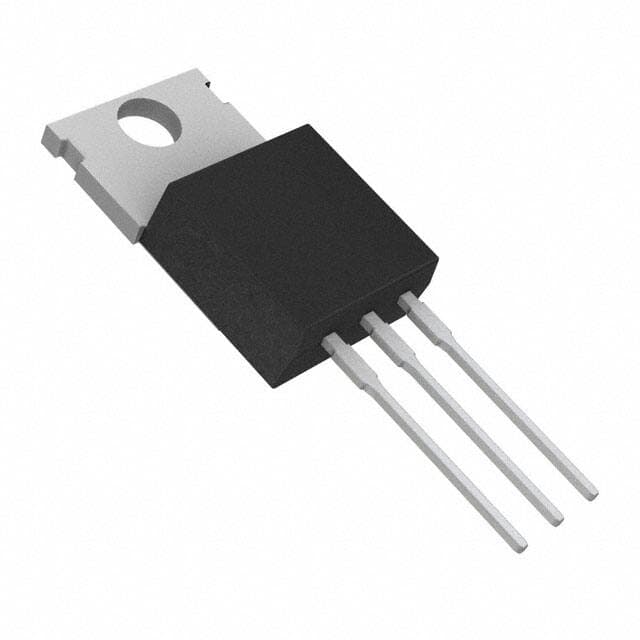

ON Semiconductor MBR2535CTL
Manufacturer No:
MBR2535CTL
Manufacturer:
Package:
TO-220-3
Description:
Schottky Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -65°C~150°C 12.5A 35V-DC TO-220-3 Through Hole
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
MBR2535CTL information
ON Semiconductor MBR2535CTL technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor MBR2535CTL.
- Type
- Parameter
- Lifecycle Status
- LAST SHIPMENTS (Last Updated: 1 day ago)
- Mounting Type
- Through Hole
- Package / Case
- TO-220-3
- Number of Pins
- 3
- Supplier Device Package
- TO-220AB
- Packaging
- Tube
- Series
- SWITCHMODE?
- Published
- 2008
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Max Operating Temperature
- 150°C
- Min Operating Temperature
- -65°C
- Capacitance
- 500pF
- Voltage - Rated DC
- 35V
- Current Rating
- 12.5A
- Element Configuration
- Common Cathode
- Speed
- Fast Recovery =< 500ns, > 200mA (Io)
- Diode Type
- Schottky
- Current - Reverse Leakage @ Vr
- 5mA @ 35V
- Voltage - Forward (Vf) (Max) @ If
- 470mV @ 12.5A
- Forward Current
- 25A
- Max Reverse Leakage Current
- 5mA
- Operating Temperature - Junction
- -65°C~150°C
- Max Surge Current
- 150A
- Breakdown Voltage
- 35V
- Current - Average Rectified (Io)
- 12.5A
- Max Reverse Voltage (DC)
- 35V
- Average Rectified Current
- 12.5A
- Peak Reverse Current
- 5mA
- Max Repetitive Reverse Voltage (Vrrm)
- 35V
- Peak Non-Repetitive Surge Current
- 150A
- Diode Configuration
- 1 Pair Common Cathode
- Max Forward Surge Current (Ifsm)
- 150A
- RoHS Status
- RoHS Compliant
- Lead Free
- Contains Lead
Download datasheets and manufacturer documentation for ON Semiconductor MBR2535CTL.
Datasheets:
ReachStatement:
MBR2535CTL Overview
Surge currents should be monitored and prevented from exceeding 150A.This device will operate when the forward voltage is set to 25A.The part can be used to draw a current of 12.5A.This device has approximately 500pF farads of capacitance.A reverse voltage peak of 5mA is used to power devices like this one.When reverse biased, its maximal reverse leakage current is 5mA, which is the current flowing from that semiconductor device.
MBR2535CTL Features
500pF farads
a peak voltage of 5mA
a reverse voltage peak of 5mA
MBR2535CTL Applications
There are a lot of ON Semiconductor
MBR2535CTL applications of rectifier diode array.
- Rectifier for drives applications
- Crowbar applications
- Rectifiers for UBS
- Battery chargers
- Rectifiers in switch mode power supplies (SMPS)
- Free wheeling diode in low voltage converters
- General Rectification
