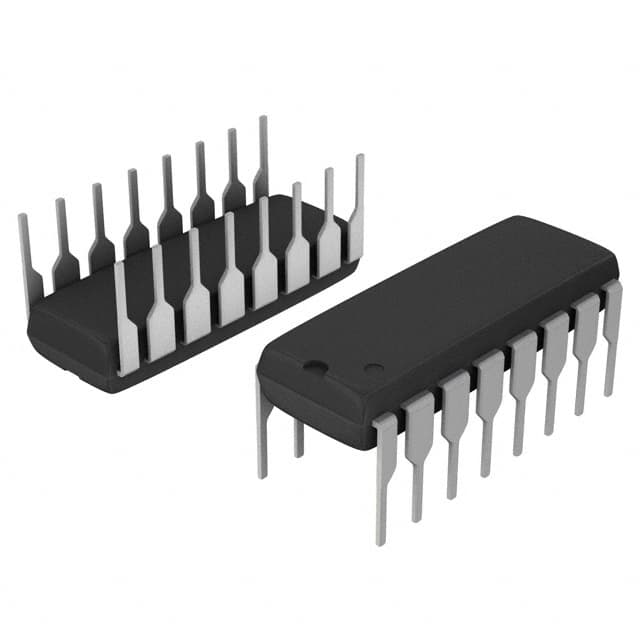

ON Semiconductor KA3525A
ON Semiconductor KA3525A

ON Semiconductor KA3525A

Manufacturer No:

KA3525A

Manufacturer:

ON Semiconductor

Package:

16-DIP (0.300, 7.62mm)

Description:

16 Terminals 7V~20V 16-Pin KA3525A DC to DC converter IC SWITCHING CONTROLLER 2 Outputs 60Hz~430kHz Transistor Driver

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

KA3525A information

ON Semiconductor KA3525A technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor KA3525A.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 1 day ago)
  • Factory Lead Time
  • 11 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 16-DIP (0.300, 7.62mm)
  • Number of Pins
  • 16
  • Weight
  • 1.627826g
  • Operating Temperature
  • 0°C~70°C TA
  • Packaging
  • Tube
  • Published
  • 2002
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 16
  • ECCN Code
  • EAR99
  • Subcategory
  • Switching Regulator or Controllers
  • Technology
  • BIPOLAR
  • Terminal Position
  • DUAL
  • Number of Functions
  • 1
  • Frequency
  • 430kHz
  • Base Part Number
  • KA3525A
  • Number of Outputs
  • 2
  • Output Type
  • Transistor Driver
  • Input Voltage-Nom
  • 20V
  • Analog IC - Other Type
  • SWITCHING CONTROLLER
  • Output Configuration
  • Positive
  • Output Current
  • 500mA
  • Voltage - Supply (Vcc/Vdd)
  • 7V~20V
  • Max Supply Current
  • 20mA
  • Control Features
  • Enable, Soft Start
  • Control Mode
  • VOLTAGE-MODE
  • Frequency - Switching
  • 60Hz~430kHz
  • Max Input Voltage
  • 40V
  • Control Technique
  • PULSE WIDTH MODULATION
  • Synchronous Rectifier
  • Yes
  • Switcher Configuration
  • PUSH-PULL
  • Max Duty Cycle
  • 49 %
  • Output Phases
  • 1
  • Height
  • 3.25mm
  • Length
  • 19.8mm
  • Width
  • 6.4mm
  • REACH SVHC
  • No SVHC
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor KA3525A.

Datasheets:

PCN Design/Specification:

PCN Packaging:

KA3525A Description

The KA3525A is a monolithic integrated circuit that contains all of the necessary control circuitry for a pulse width modulating regulator. The KA3525A includes a voltage reference, error amplifier, pulse width modulator, oscillator, under-voltage lockout, soft start circuit, and output driver.


KA3525A Features

  • 5V ± 1% Reference

  • Oscillator Sync terminal

  • Internal Soft Start.

  • Deadtime Control

  • Under-Voltage Lockout


KA3525A Applications

  • Other Consumer Electronics

  • Consumer power electronics applications such as pure sine wave inverters

  • Generate a regulated voltage in a boost converter and a buck converter
