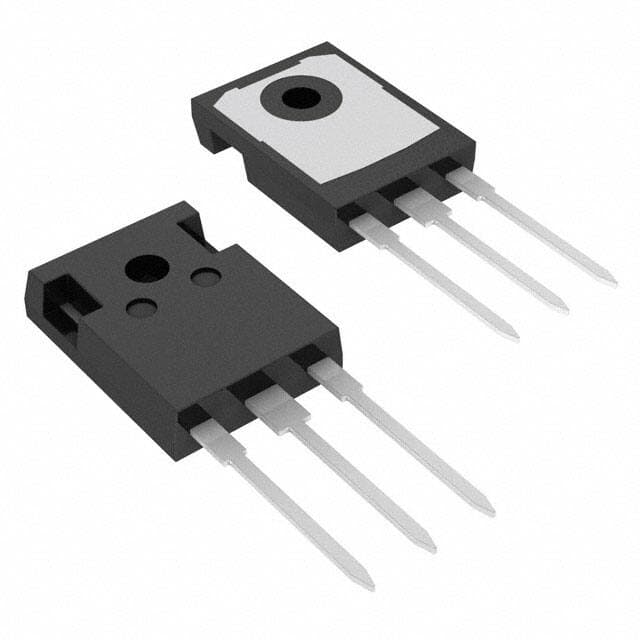

ON Semiconductor ISL9K1560G3
ON Semiconductor ISL9K1560G3

ON Semiconductor ISL9K1560G3

Manufacturer No:

ISL9K1560G3

Manufacturer:

ON Semiconductor

Package:

TO-247-3

Description:

Standard Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) -55°C~175°C 15A 600V-DC 2-Element TO-247-3 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ISL9K1560G3 information

ON Semiconductor ISL9K1560G3 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor ISL9K1560G3.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 2 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-247-3
  • Number of Pins
  • 3
  • Weight
  • 6.39g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Series
  • Stealth?
  • Published
  • 2002
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 175°C
  • Min Operating Temperature
  • -55°C
  • Additional Feature
  • FREEWHEELING DIODE, SNUBBER DIODE
  • HTS Code
  • 8541.10.00.80
  • Capacitance
  • 62?F
  • Subcategory
  • Rectifier Diodes
  • Technology
  • AVALANCHE
  • Terminal Position
  • SINGLE
  • Current Rating
  • 15A
  • Number of Elements
  • 2
  • Element Configuration
  • Common Cathode
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 100?A @ 600V
  • Power Dissipation
  • 150W
  • Voltage - Forward (Vf) (Max) @ If
  • 2.2V @ 15A
  • Forward Current
  • 15A
  • Operating Temperature - Junction
  • -55°C~175°C
  • Max Surge Current
  • 200A
  • Application
  • FAST SOFT RECOVERY
  • Forward Voltage
  • 2.2V
  • Max Reverse Voltage (DC)
  • 600V
  • Average Rectified Current
  • 15A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 40 ns
  • Peak Reverse Current
  • 100?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Peak Non-Repetitive Surge Current
  • 200A
  • Reverse Voltage
  • 600V

Download datasheets and manufacturer documentation for ON Semiconductor ISL9K1560G3.

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

Datasheets:

ISL9K1560G3 Overview


Devices that have a forward voltage of 2.2V will operate.Keeping the surge current under 200A and preventing it from exceeding it should be the rule.Devices that have a forward voltage of 15A will operate.Array is possible to draw current from the part of 15A.This device has a capacitance of about 62?F farads.The reverse voltage peak of this device is 100?A.As a derivative of its primary action, this electronic or electrical device generates 150W of heat.

ISL9K1560G3 Features


2.2V forward voltage
62?F farads
a peak voltage of 100?A
a reverse voltage peak of 100?A


ISL9K1560G3 Applications


There are a lot of ON Semiconductor
ISL9K1560G3 applications of rectifier diode array.


  • Rectifier for drives applications
  • Crowbar applications
  • Rectifiers for UBS
  • Battery chargers
  • Rectifiers in switch mode power supplies (SMPS)
  • Free wheeling diode in low voltage converters
  • General Rectification
