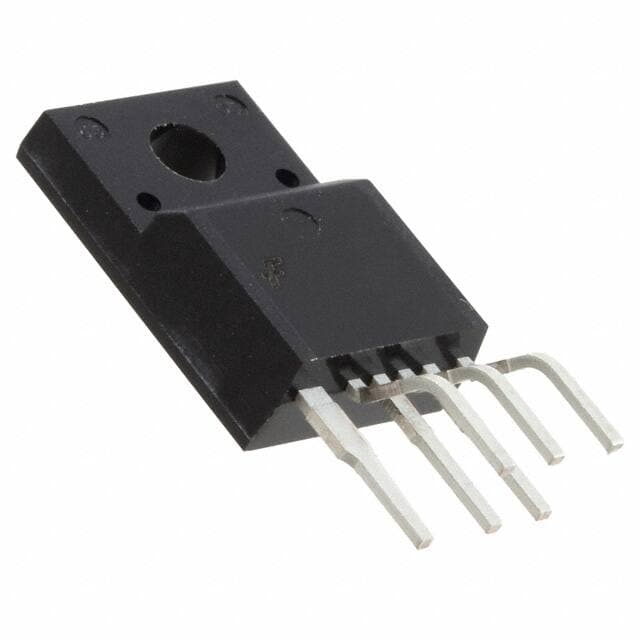

ON Semiconductor FSL138MRTWDTU

Manufacturer No:

FSL138MRTWDTU

Manufacturer:

ON Semiconductor

Package:

TO-220-6 Full Pack, Formed Leads

Description:

6 Terminations 7.5V~26V 6 Pin FSL138 AC to DC power converter FPS? Series 1 Outputs

Quantity:

Delivery:

Payment:

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

FSL138MRTWDTU information

ON Semiconductor FSL138MRTWDTU technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FSL138MRTWDTU.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 day ago)

Factory Lead Time
6 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-220-6 Full Pack, Formed Leads

Number of Pins
6

Weight
2.752g

Operating Temperature
-40Â°C~125Â°C TJ

Packaging
Tube

Series
FPS?

Published
2016

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
6

ECCN Code
EAR99

Power (Watts)
50W

Subcategory
Switching Regulator or Controllers

Power Rating
35W

Max Power Dissipation
45W

Terminal Position
ZIG-ZAG

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Frequency
67kHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Number of Outputs
1

Qualification Status
Not Qualified

Analog IC - Other Type
SWITCHING CONTROLLER

Nominal Supply Current
1mA

Current
2.15A

Power Dissipation
45W

Output Current
2.15A

Voltage - Supply (Vcc/Vdd)
7.5V~26V

Max Supply Current
1.4mA

Topology
Flyback

Control Mode
CURRENT-MODE

Max Output Power
35W

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Load, Over Temperature, Over Voltage

Max Duty Cycle
73 %

Max Junction Temperature (Tj)
125Â°C

Duty Cycle
67%

Output Isolation
Isolated

Voltage - Start Up
12V

Min Breakdown Voltage
800V

Height
20mm

Length
10.16mm

Width
4.8mm

Download datasheets and manufacturer documentation for ON Semiconductor FSL138MRTWDTU.

FSL138MRTWDTU Overview

There is a ac to dc converter embedded in package TO-220-6 Full Pack, Formed Leads .The ac dc converter is available in Tube case.In this case, the AC/DC converter is mounted in the way of Through Hole .This ac dc converter should be operated at a temperature of -40Â°C~125Â°C TJ Â°C so that it can deliver its performance.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING CONTROLLER is employed.The AC/DC converter is capable of being used when the supply voltage is 7.5V~26V (Vcc/Vdd).There are a total of 6 terminations in it.It contains 6 pins.Through Hole is a suitable mounting point for the ac dc converters.It belongs to a manufacturer family of FPS? .Similar acdc converters can be found using the FSL138 family.AC to DC converter is necessary to run 1 outputs.AC to DC converter is contained in Switching Regulator or Controllers .We are setting the output current to 2.15A .This power AC DC is capable of reaching high efficiencies when operating at a frequency of 67kHz .Approximately 1.4mA amps of supply current can be handled by the power AC DC.A maximum output power of 35W can be used with the AC to DC power converter.

FSL138MRTWDTU Features

Packaged with TO-220-6 Full Pack, Formed Leads
With 6 pins
Output Current at 2.15A

FSL138MRTWDTU Applications

There are a lot of ON Semiconductor
FSL138MRTWDTU AC DC Converters applications.

DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
