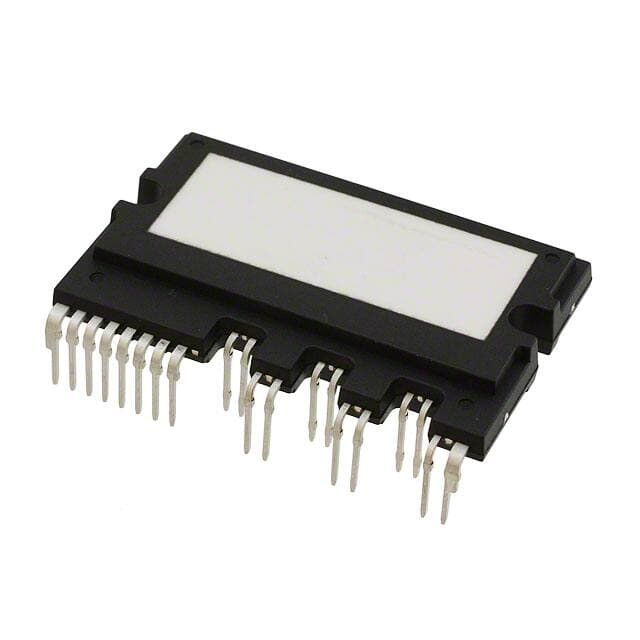

ON Semiconductor FSBB10CH120DF
ON Semiconductor FSBB10CH120DF

ON Semiconductor FSBB10CH120DF

Manufacturer No:

FSBB10CH120DF

Manufacturer:

ON Semiconductor

Package:

27-PowerDIP Module (1.205, 30.60mm)

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

FSBB10CH120DF information

ON Semiconductor FSBB10CH120DF technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FSBB10CH120DF.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 1 day ago)
  • Factory Lead Time
  • 7 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 27-PowerDIP Module (1.205, 30.60mm)
  • Weight
  • 13.32g
  • Series
  • Motion SPM® 3
  • Published
  • 2016
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 27
  • ECCN Code
  • EAR99
  • Type
  • IGBT
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -40°C
  • HTS Code
  • 8541.29.00.95
  • Max Power Dissipation
  • 69W
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 15V
  • JESD-30 Code
  • R-XDMA-T27
  • Voltage - Isolation
  • 2500Vrms
  • Configuration
  • 3 Phase
  • Voltage
  • 1.2kV
  • Current
  • 10A
  • Collector Emitter Voltage (VCEO)
  • 2.8V
  • Length
  • 44mm
  • Height Seated (Max)
  • 7.5mm
  • Width
  • 26.8mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ON Semiconductor FSBB10CH120DF.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

ReachStatement:

Description:

The ON Semiconductor FSBB10CH120DF is a Power Driver Module (SPM) designed for use in high-voltage, high-current applications. This module is rated for a maximum voltage of 1.2kV and a maximum current of 10A. It is designed to provide a high level of efficiency and reliability in a wide range of applications.

Features:

? Rated for a maximum voltage of 1.2kV and a maximum current of 10A
? High level of efficiency and reliability
? Low power consumption
? Low EMI/RFI emissions
? High surge capability
? High temperature operation
? RoHS compliant

Applications:

The ON Semiconductor FSBB10CH120DF Power Driver Module (SPM) is suitable for a wide range of applications, including:

? Automotive
? Industrial
? Lighting
? Power supplies
? Motor control
? Robotics
? Renewable energy
