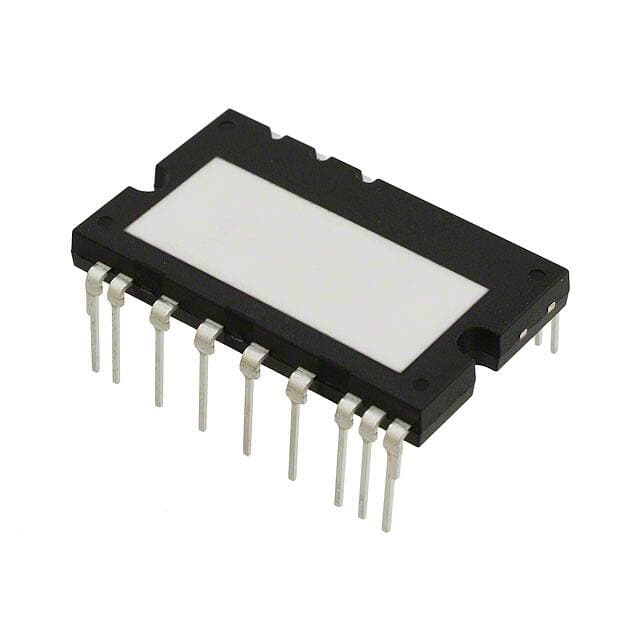

ON Semiconductor FNB43060T2
ON Semiconductor FNB43060T2

ON Semiconductor FNB43060T2

Manufacturer No:

FNB43060T2

Manufacturer:

ON Semiconductor

Package:

26-PowerDIP Module (1.024, 26.00mm)

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

FNB43060T2 information

ON Semiconductor FNB43060T2 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FNB43060T2.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 8 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 26-PowerDIP Module (1.024, 26.00mm)
  • Weight
  • 17.088g
  • Series
  • Motion SPM® 45
  • Published
  • 2012
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 26
  • Type
  • IGBT
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -40°C
  • Additional Feature
  • CONTROL SUPPLY VOLTAGE(VCC)= 15V
  • Technology
  • HYBRID
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Number of Functions
  • 1
  • Supply Voltage
  • 300V
  • Reach Compliance Code
  • not_compliant
  • JESD-30 Code
  • R-XDFM-T26
  • Voltage - Isolation
  • 2000Vrms
  • Supply Voltage-Max (Vsup)
  • 400V
  • Temperature Grade
  • AUTOMOTIVE
  • Configuration
  • 3 Phase
  • Max Current Rating
  • 30A
  • Output Current-Max
  • 60A
  • Collector Emitter Voltage (VCEO)
  • 2.25V
  • Min Breakdown Voltage
  • 600V
  • REACH SVHC
  • No SVHC
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ON Semiconductor FNB43060T2.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

TechnicalDrawing:

ReachStatement:

Description: The FNB43060T2 Smart Power Module from ON Semiconductor is a high-performance, high-efficiency, and cost-effective solution for driving high-power loads. It is designed to provide a reliable and efficient power supply for a wide range of applications. The module features a 2KV isolation rating, a SPMAB-C26 package, and a wide operating temperature range of -40°C to +125°C.

Features:
? 2KV isolation rating
? SPMAB-C26 package
? Wide operating temperature range of -40°C to +125°C
? High-performance and high-efficiency
? Cost-effective solution
? Reliable power supply

Applications: The FNB43060T2 Smart Power Module from ON Semiconductor is suitable for a wide range of applications, including industrial, automotive, and consumer electronics. It can be used for driving high-power loads, such as motors, pumps, and solenoids. It is also suitable for use in power supplies, inverters, and other power conversion applications.
