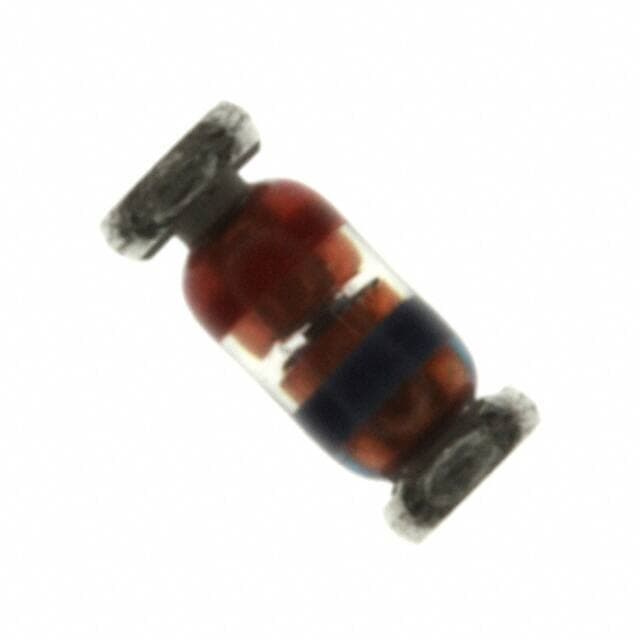

ON Semiconductor FLZ20VA

Manufacturer No:

FLZ20VA

Manufacturer:

ON Semiconductor

Package:

DO-213AC, MINI-MELF, SOD-80

Description:

23.5Ohm Â±3% 18.52V 133nA @ 15V -65Â°C~175Â°C 500mW DO-213AC, MINI-MELF, SOD-80

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FLZ20VA information

ON Semiconductor FLZ20VA technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FLZ20VA.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
DO-213AC, MINI-MELF, SOD-80

Number of Pins
2

Weight
51.84mg

Operating Temperature
-65Â°C~175Â°C

Packaging
Tape & Reel (TR)

Tolerance
Â±3%

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Power Rating
500mW

Voltage - Rated DC
20V

Max Power Dissipation
500mW

Base Part Number
FLZ20

Impedance
23.5Ohm

Element Configuration
Single

Current - Reverse Leakage @ Vr
133nA @ 15V

Power Dissipation
500mW

Voltage - Forward (Vf) (Max) @ If
1.2V @ 200mA

Max Reverse Leakage Current
133nA

Impedance-Max
23.5Ohm

Test Current
10mA

Voltage - Zener (Nom) (Vz)
18.5V

Voltage Tolerance
2%

Zener Current
10mA

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor FLZ20VA.

ReachStatement:

onsemiconductor-rmpa2550-reachstatement-3729.pdf

FLZ20VA Overview

It is necessary to supply this electrical device with a reverse leakage current of 133nA @ 15V.Reverse leakage current reaches a maximum of 133nA.In operation, the maximum voltage - Zener (Nom) is set to 18.5V.The design flexibility of this device is extremely high since its zener current is 10mA.For the device to operate, the maximum forward voltage (Vf) 1.2V @ 200mA must be supplied.

FLZ20VA Features

reverse leakage current of 133nA @ 15V
133nA @ 15V is the maximum voltage (Tol)
Reverse leakage current reaches 133nA
the zener current of 10mA

FLZ20VA Applications

There are a lot of ON Semiconductor
FLZ20VA applications of zener single diodes.
