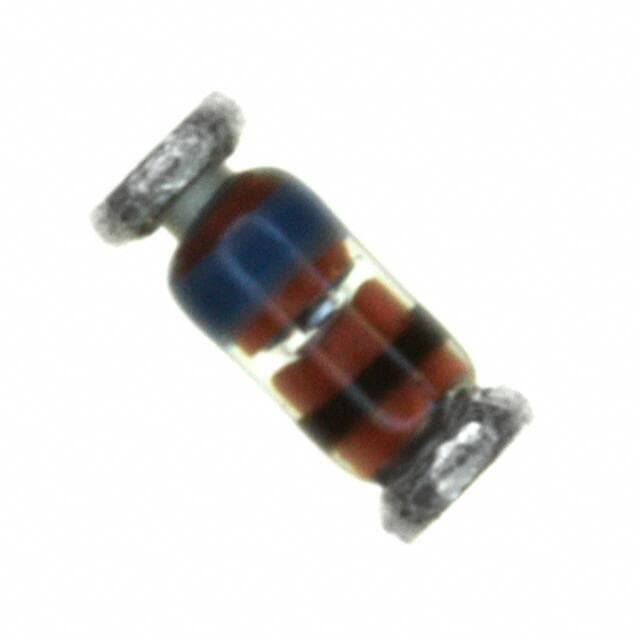

ON Semiconductor FLZ13VC

Manufacturer No:

FLZ13VC

Manufacturer:

ON Semiconductor

Package:

DO-213AC, MINI-MELF, SOD-80

Description:

11.4Ohm Â±3% 13.33V 133nA @ 10V -65Â°C~175Â°C 500mW DO-213AC, MINI-MELF, SOD-80

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FLZ13VC information

ON Semiconductor FLZ13VC technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FLZ13VC.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
DO-213AC, MINI-MELF, SOD-80

Number of Pins
2

Weight
51.84mg

Operating Temperature
-65Â°C~175Â°C

Packaging
Tape & Reel (TR)

Tolerance
Â±3%

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Power Rating
500mW

Voltage - Rated DC
13V

Max Power Dissipation
500mW

Base Part Number
FLZ13

Impedance
11.4Ohm

Element Configuration
Single

Current - Reverse Leakage @ Vr
133nA @ 10V

Power Dissipation
500mW

Voltage - Forward (Vf) (Max) @ If
1.2V @ 200mA

Max Reverse Leakage Current
133nA

Impedance-Max
11.4Ohm

Test Current
10mA

Voltage - Zener (Nom) (Vz)
13.3V

Voltage Tolerance
8%

Zener Current
10mA

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor FLZ13VC.

ReachStatement:

onsemiconductor-rmpa2550-reachstatement-3729.pdf

FLZ13VC Overview

The reverse leakage current for this electrical device is 133nA @ 10V.Reverse leakage currents can reach 133nA.In the course of operation, Zener (Nom) drops to zero voltage.In terms of design, diode has a high degree of flexibildiodey thanks to diodes 10mA zener current.This value reaches 1.2V @ 200mA when the maximum Forward voltage (Vf) is applied.

FLZ13VC Features

reverse leakage current of 133nA @ 10V
133nA @ 10V is the maximum voltage (Tol)
Reverse leakage current reaches 133nA
the zener current of 10mA

FLZ13VC Applications

There are a lot of ON Semiconductor
FLZ13VC applications of zener single diodes.
