Manufacturer No:

FFSD10120A

Manufacturer:

ON Semiconductor

Package:

TO-252-3, DPak (2 Leads + Tab), SC-63

Description:

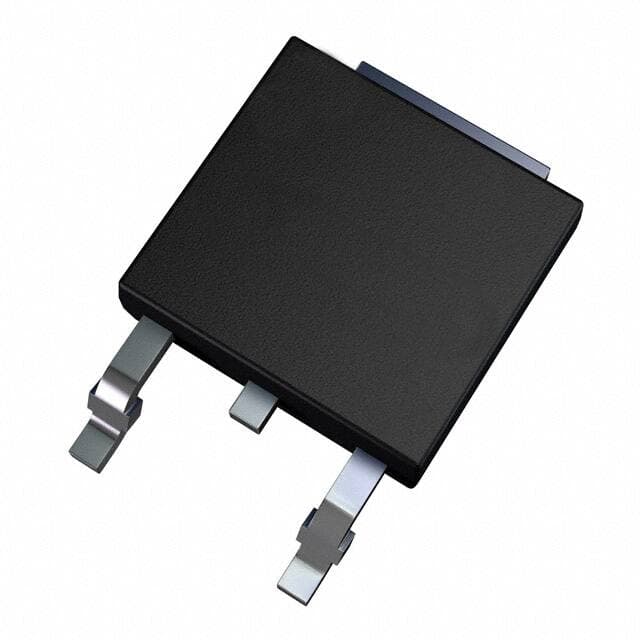

Silicon Carbide Schottky Diode Rectifier No Recovery Time > 500mA (Io) 1.75V @ 10A 200?A @ 1200V 2-Termination Tape & Reel (TR) TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FFSD10120A information

ON Semiconductor FFSD10120A technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FFSD10120A.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 10 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-252-3, DPak (2 Leads + Tab), SC-63
  • Weight
  • 260.37mg
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2016
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Terminal Finish
  • Tin (Sn)
  • Additional Feature
  • HIGH RELIABILITY, PD-CASE
  • Technology
  • AVALANCHE
  • Terminal Form
  • GULL WING
  • JESD-30 Code
  • R-PSSO-G2
  • Operating Temperature (Max)
  • 175°C
  • Operating Temperature (Min)
  • -55°C
  • Number of Elements
  • 1
  • Power Dissipation-Max
  • 283W
  • Element Configuration
  • Single
  • Speed
  • No Recovery Time > 500mA (Io)
  • Current - Reverse Leakage @ Vr
  • 200?A @ 1200V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.75V @ 10A
  • Case Connection
  • CATHODE
  • Output Current-Max
  • 22A
  • Application
  • EFFICIENCY
  • Voltage - DC Reverse (Vr) (Max)
  • 1200V
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 0ns
  • Max Repetitive Reverse Voltage (Vrrm)
  • 1.2kV
  • Rep Pk Reverse Voltage-Max
  • 1200V
  • JEDEC-95 Code
  • TO-252AA
  • Capacitance @ Vr, F
  • 612pF @ 1V 100kHz
  • Reverse Current-Max
  • 200?A
  • Max Forward Surge Current (Ifsm)
  • 90A
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ON Semiconductor FFSD10120A.

Datasheets:

PCN Design/Specification:

PCN Packaging:

ReachStatement:

FFSD10120A Overview


In the case of a maximum reverse current, the value reaches 200?A.In terms of output current, the maximum value is 22A.

FFSD10120A Features


A maximum reverse current of 200?A
22A is the maximum value


FFSD10120A Applications


There are a lot of ON Semiconductor
FFSD10120A applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
