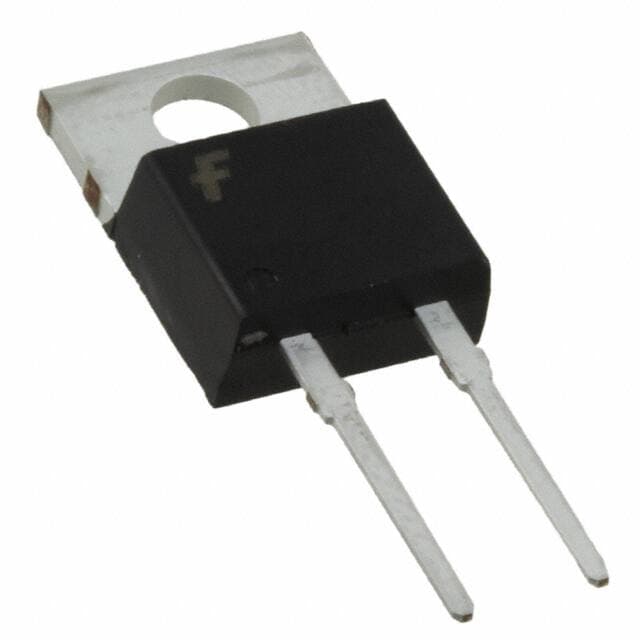

ON Semiconductor FFP30S60STU
ON Semiconductor FFP30S60STU

ON Semiconductor FFP30S60STU

Manufacturer No:

FFP30S60STU

Manufacturer:

ON Semiconductor

Package:

TO-220-2

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 2.6V @ 30A -65°C~150°C 100?A @ 600V 2-Termination Tube TO-220-2 Through Hole

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FFP30S60STU information

ON Semiconductor FFP30S60STU technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FFP30S60STU.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 2 days ago)
  • Factory Lead Time
  • 4 Weeks
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • TO-220-2
  • Number of Pins
  • 2
  • Weight
  • 2.16g
  • Diode Element Material
  • SILICON
  • Packaging
  • Tube
  • Series
  • Stealth?
  • Published
  • 2007
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Tin (Sn)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • Additional Feature
  • HIGH RELIABILITY, FREE WHEELING DIODE
  • HTS Code
  • 8541.10.00.80
  • Subcategory
  • Rectifier Diodes
  • Number of Elements
  • 1
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 100?A @ 600V
  • Voltage - Forward (Vf) (Max) @ If
  • 2.6V @ 30A
  • Forward Current
  • 30A
  • Operating Temperature - Junction
  • -65°C~150°C
  • Max Surge Current
  • 300A
  • Application
  • HYPERFAST SOFT RECOVERY
  • Forward Voltage
  • 2.6V
  • Max Reverse Voltage (DC)
  • 600V
  • Average Rectified Current
  • 30A
  • Number of Phases
  • 1
  • Reverse Recovery Time
  • 40 ns
  • Peak Reverse Current
  • 100?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Peak Non-Repetitive Surge Current
  • 300A
  • Reverse Voltage
  • 600V
  • Max Forward Surge Current (Ifsm)
  • 300A
  • Recovery Time
  • 40 ns
  • Height
  • 16.51mm
  • Length
  • 10.67mm
  • Width
  • 4.83mm
  • REACH SVHC
  • No SVHC

Download datasheets and manufacturer documentation for ON Semiconductor FFP30S60STU.

Datasheets:

PCN Design/Specification:

PCN Packaging:

FFP30S60STU Overview


An appropriate reverse voltage is 600V.Devices with this rating have an average rectified current of 30A volts.30A is the maximum value of forward current.There can be no surge current above 300A.Using the data chart, the peak reverse is 100?A in the datasheets.

FFP30S60STU Features


an average rectified current of 30A volts
the peak reverse is 100?A


FFP30S60STU Applications


There are a lot of ON Semiconductor
FFP30S60STU applications of single-phase diode rectifier.


  • DC motor control and drives
  • Battery chargers
  • Welders
  • Power converters
  • Reverse Polarity Protection
  • Ultra High-Speed Switching
  • Freewheeling
  • Polarity Protection Diode
  • Recirculating Diode
  • Switching Diode
