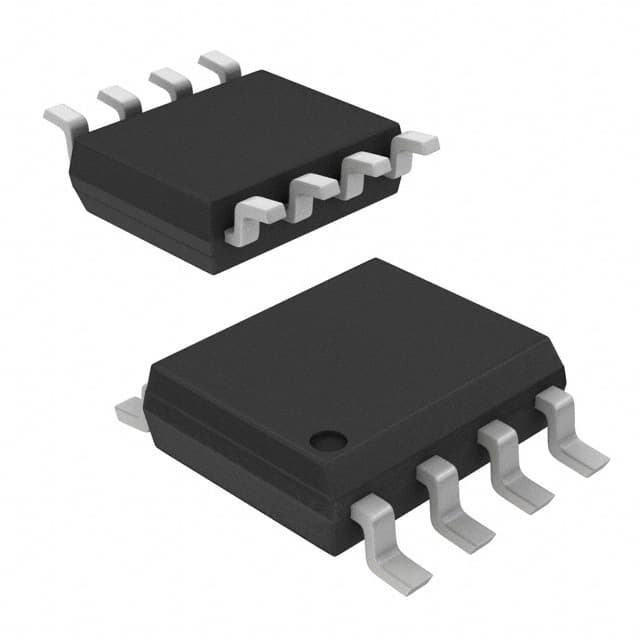

ON Semiconductor FDS4559
ON Semiconductor FDS4559

ON Semiconductor FDS4559

Manufacturer No:

FDS4559

Manufacturer:

ON Semiconductor

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

FDS4559 information

ON Semiconductor FDS4559 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FDS4559.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 1 day ago)
  • Factory Lead Time
  • 8 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-SOIC (0.154, 3.90mm Width)
  • Number of Pins
  • 8
  • Weight
  • 187mg
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~175°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • PowerTrench®
  • Published
  • 2002
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Resistance
  • 55MOhm
  • Subcategory
  • Other Transistors
  • Max Power Dissipation
  • 2W
  • Terminal Form
  • GULL WING
  • Number of Elements
  • 2
  • Number of Channels
  • 2
  • Element Configuration
  • Dual
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 2W
  • Power - Max
  • 1W
  • FET Type
  • N and P-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 55m ? @ 4.5A, 10V
  • Vgs(th) (Max) @ Id
  • 3V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 650pF @ 25V
  • Current - Continuous Drain (Id) @ 25°C
  • 4.5A 3.5A
  • Gate Charge (Qg) (Max) @ Vgs
  • 18nC @ 10V
  • Rise Time
  • 10ns
  • Polarity/Channel Type
  • N-CHANNEL AND P-CHANNEL
  • Fall Time (Typ)
  • 12 ns
  • Turn-Off Delay Time
  • 19 ns
  • Continuous Drain Current (ID)
  • 4.5A
  • Threshold Voltage
  • 2.2V
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain to Source Breakdown Voltage
  • 60V
  • Dual Supply Voltage
  • 60V
  • Avalanche Energy Rating (Eas)
  • 90 mJ

Download datasheets and manufacturer documentation for ON Semiconductor FDS4559.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Packaging:

TechnicalDrawing:

ReachStatement:

The ON SEMICONDUCTOR FDS4559 is a dual N/P channel MOSFET array in an 8-pin SOIC package. This device is designed to provide high-speed switching and low on-resistance in a wide range of applications. It features a maximum drain-source voltage of 60V, a maximum drain current of 4A, and a maximum gate-source voltage of ±20V. The FDS4559 is ideal for use in power management, motor control, and other high-speed switching applications. It is RoHS compliant and halogen-free, making it an environmentally friendly choice. The FDS4559 is a reliable and cost-effective solution for a variety of applications.
