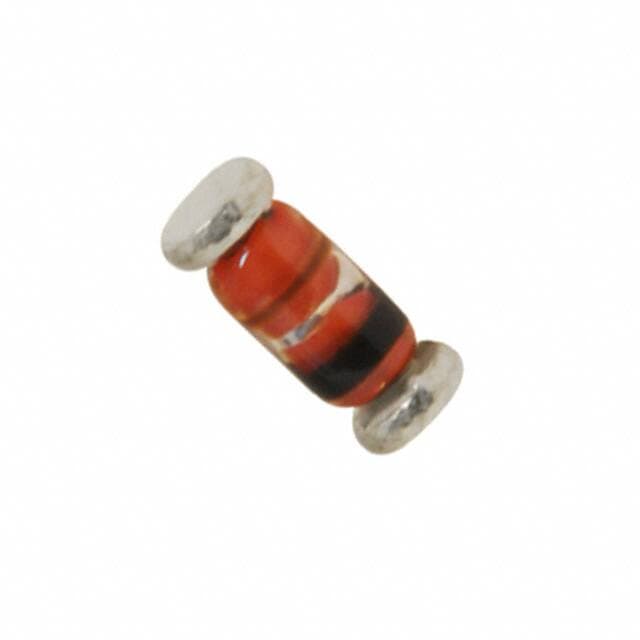

ON Semiconductor FDLL4151
Manufacturer No:
FDLL4151
Manufacturer:
Package:
DO-213AC, MINI-MELF, SOD-80
Description:
Standard Diode Rectifier Small Signal =< 200mA (Io), Any Speed 1V @ 50mA -65°C~200°C 50nA @ 50V Tape & Reel (TR) DO-213AC, MINI-MELF, SOD-80 Surface Mount
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
FDLL4151 information
ON Semiconductor FDLL4151 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FDLL4151.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- DO-213AC, MINI-MELF, SOD-80
- Number of Pins
- 34
- Supplier Device Package
- SOD-80
- Packaging
- Tape & Reel (TR)
- Published
- 2013
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Max Operating Temperature
- 200°C
- Min Operating Temperature
- -65°C
- Capacitance
- 4pF
- Voltage - Rated DC
- 75V
- Current Rating
- 200mA
- Base Part Number
- LL4150
- Polarity
- Standard
- Element Configuration
- Single
- Speed
- Small Signal =< 200mA (Io), Any Speed
- Diode Type
- Standard
- Current - Reverse Leakage @ Vr
- 50nA @ 50V
- Power Dissipation
- 500mW
- Output Current
- 200mA
- Voltage - Forward (Vf) (Max) @ If
- 1V @ 50mA
- Forward Current
- 200mA
- Max Surge Current
- 4A
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Current - Average Rectified (Io)
- 200mA
- Forward Voltage
- 1V
- Max Reverse Voltage (DC)
- 75V
- Average Rectified Current
- 200mA
- Reverse Recovery Time
- 4 ns
- Peak Reverse Current
- 50nA
- Max Repetitive Reverse Voltage (Vrrm)
- 75V
- Capacitance @ Vr, F
- 4pF @ 0V 1MHz
- Peak Non-Repetitive Surge Current
- 4A
- Reverse Voltage
- 75V
- Recovery Time
- 4 ns
- Radiation Hardening
- No
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for ON Semiconductor FDLL4151.
Datasheets:
ReachStatement:
FDLL4151 Overview
Reverse voltages of 75V are reasonable.A rectified current of 200mA volts is averaged for this device.During its primary action, this device produces no heat.A value of 200mA is the maximum forward current that can be allowed.This fuse has a current rating of 200mA, which is the maximum current that will not deteriorate the fuse element over a long period.4A is the maximum value of surge current.A device that has a capacitance of 4pF can provide a value of 4pF.As indicated by the data chart in the datasheets, the peak reverse is 50nA.
FDLL4151 Features
an average rectified current of 200mA volts
a current rating of 200mA
the peak reverse is 50nA
FDLL4151 Applications
There are a lot of ON Semiconductor
FDLL4151 applications of single-phase diode rectifier.
- DC motor control and drives
- Battery chargers
- Welders
- Power converters
- Reverse Polarity Protection
- Ultra High-Speed Switching
- Freewheeling
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
