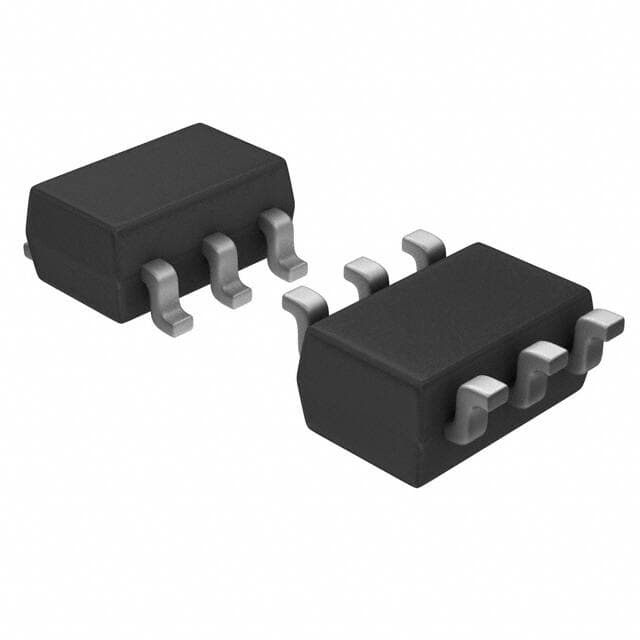

ON Semiconductor FDC3601N
ON Semiconductor FDC3601N

ON Semiconductor FDC3601N

Manufacturer No:

FDC3601N

Manufacturer:

ON Semiconductor

Package:

SOT-23-6 Thin, TSOT-23-6

Description:

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

FDC3601N information

ON Semiconductor FDC3601N technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FDC3601N.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 1 day ago)
  • Factory Lead Time
  • 5 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SOT-23-6 Thin, TSOT-23-6
  • Number of Pins
  • 6
  • Weight
  • 36mg
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • PowerTrench®
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • ECCN Code
  • EAR99
  • Resistance
  • 500MOhm
  • Terminal Finish
  • Tin (Sn)
  • Subcategory
  • FET General Purpose Power
  • Voltage - Rated DC
  • 100V
  • Max Power Dissipation
  • 960mW
  • Terminal Form
  • GULL WING
  • Current Rating
  • 1A
  • Element Configuration
  • Dual
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 960mW
  • Turn On Delay Time
  • 8 ns
  • Power - Max
  • 700mW
  • FET Type
  • 2 N-Channel (Dual)
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 500m ? @ 1A, 10V
  • Vgs(th) (Max) @ Id
  • 4V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 153pF @ 50V
  • Gate Charge (Qg) (Max) @ Vgs
  • 5nC @ 10V
  • Rise Time
  • 4ns
  • Fall Time (Typ)
  • 4 ns
  • Turn-Off Delay Time
  • 11 ns
  • Continuous Drain Current (ID)
  • 1A
  • Threshold Voltage
  • 2.6V
  • Gate to Source Voltage (Vgs)
  • 20V
  • Drain Current-Max (Abs) (ID)
  • 1A
  • Drain to Source Breakdown Voltage
  • 100V
  • FET Technology
  • METAL-OXIDE SEMICONDUCTOR
  • FET Feature
  • Standard
  • Height
  • 1mm
  • Length
  • 3mm

Download datasheets and manufacturer documentation for ON Semiconductor FDC3601N.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Packaging:

TechnicalDrawing:

ReachStatement:

FDC3601N      Description


These N-channel 100V MOSFET are manufactured using an advanced PowerTrack process tailored to minimize on-resistance while maintaining low gate charge for excellent switching performance. These devices are designed to provide excellent power consumption in a very small footprint and are suitable for impractical applications in larger and more expensive SO-8 and TSSOP-8 packages.



FDC3601N       Features



1.0 A, 100 V

RDS(on) = 500 m|?@ VGS = 10 V

RDS(on) = 550 m|? @ VGS = 6 V

Low gate charge (3.7nC typical)

Fast switching speed

High performance trench technology for extremely low RDS(ON)

SuperSOT?-6 package: small footprint 72%(smaller than standard SO-8); low profile (1mm thick)


FDC3601N             Applications


This product is general usage and suitable for many different applications.
