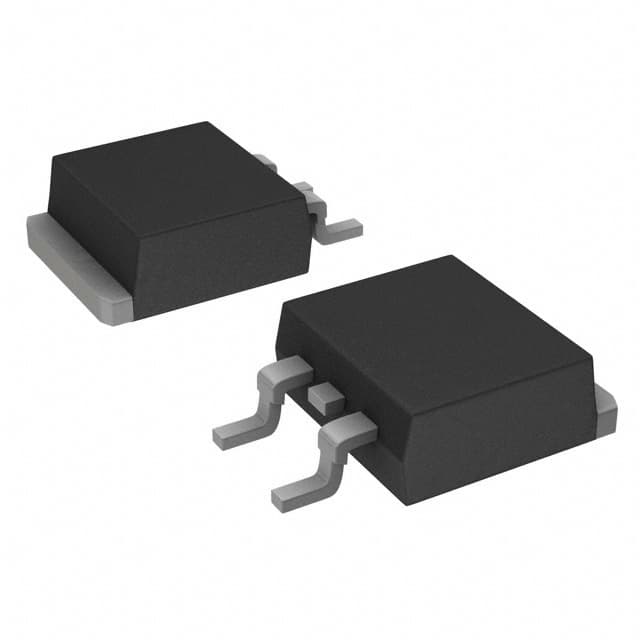

ON Semiconductor FDB33N25TM
ON Semiconductor FDB33N25TM

ON Semiconductor FDB33N25TM

Manufacturer No:

FDB33N25TM

Manufacturer:

ON Semiconductor

Package:

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Description:

MOSFET (Metal Oxide) N-Channel Tape & Reel (TR) 94m ? @ 16.5A, 10V ±30V 2135pF @ 25V 48nC @ 10V TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

FDB33N25TM information

ON Semiconductor FDB33N25TM technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor FDB33N25TM.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 19 hours ago)
  • Factory Lead Time
  • 7 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
  • Number of Pins
  • 3
  • Weight
  • 1.31247g
  • Transistor Element Material
  • SILICON
  • Operating Temperature
  • -55°C~150°C TJ
  • Packaging
  • Tape & Reel (TR)
  • Series
  • UniFET?
  • Published
  • 2004
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • ECCN Code
  • EAR99
  • Resistance
  • 94MOhm
  • Additional Feature
  • FAST SWITCHING, AVALANCHE RATED
  • Subcategory
  • FET General Purpose Power
  • Technology
  • MOSFET (Metal Oxide)
  • Terminal Form
  • GULL WING
  • Number of Elements
  • 1
  • Power Dissipation-Max
  • 235W Tc
  • Element Configuration
  • Single
  • Operating Mode
  • ENHANCEMENT MODE
  • Power Dissipation
  • 235W
  • Case Connection
  • DRAIN
  • Turn On Delay Time
  • 35 ns
  • FET Type
  • N-Channel
  • Transistor Application
  • SWITCHING
  • Rds On (Max) @ Id, Vgs
  • 94m ? @ 16.5A, 10V
  • Vgs(th) (Max) @ Id
  • 5V @ 250?A
  • Input Capacitance (Ciss) (Max) @ Vds
  • 2135pF @ 25V
  • Current - Continuous Drain (Id) @ 25°C
  • 33A Tc
  • Gate Charge (Qg) (Max) @ Vgs
  • 48nC @ 10V
  • Rise Time
  • 230ns
  • Drive Voltage (Max Rds On,Min Rds On)
  • 10V
  • Vgs (Max)
  • ±30V
  • Fall Time (Typ)
  • 120 ns
  • Turn-Off Delay Time
  • 75 ns
  • Continuous Drain Current (ID)
  • 33A
  • Threshold Voltage
  • 3V
  • Gate to Source Voltage (Vgs)
  • 30V
  • Drain to Source Breakdown Voltage
  • 250V

Download datasheets and manufacturer documentation for ON Semiconductor FDB33N25TM.

Datasheets:

Environmental Information:

PCN Design/Specification:

PCN Assembly/Origin:

PCN Packaging:

ReachStatement:

FDB33N25TM Description


FDB33N25TM is a 250V N-Channel Power MOSFET. UniFETTM MOSFET is a high voltage MOSFET family based on planar stripe and DMOS technology. This MOSFET FDB33N25TM is tailored to reduce on-state resistance and to provide better switching performance and higher avalanche energy strength. The onsemi FDB33N25TM is suitable for switching power converter applications such as power factor correction (PFC), flat panel display (FPD) TV power, ATX, and electronic lamp ballasts.



FDB33N25TM Features


  • RDS(on) = 94m? ( Max.)@ VGS = 10V, ID = 16.5A

  • Low gate charge ( Typ. 36.8nC)

  • Low Crss ( Typ. 39pF)

  • 100% avalanche tested



FDB33N25TM Applications


  • PDP TV

  • Lighting

  • Uninterruptible Power Supply

  • AC-DC Power Supply

  • ATX and electronic lamp ballasts
