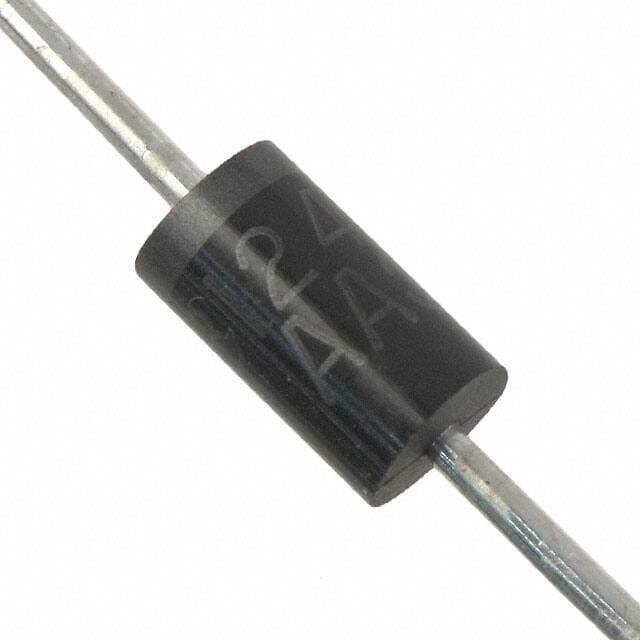

ON Semiconductor EGP30J

Manufacturer No:

EGP30J

Manufacturer:

ON Semiconductor

Package:

Description:

RECTIFIER DIODE Diode Rectifier 2-Termination Tape & Reel (TR)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

EGP30J information

ON Semiconductor EGP30J technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor EGP30J.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
10 Weeks

Contact Plating
Tin

Mount
Through Hole

Number of Pins
2

Weight
360mg

Diode Element Material
SILICON

Packaging
Tape & Reel (TR)

Published
2004

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Max Operating Temperature
150Â°C

Min Operating Temperature
-65Â°C

HTS Code
8541.10.00.80

Capacitance
75pF

Subcategory
Rectifier Diodes

Voltage - Rated DC
600V

Terminal Position
AXIAL

Terminal Form
WIRE

Current Rating
3A

Polarity
Standard

Element Configuration
Single

Diode Type
RECTIFIER DIODE

Power Dissipation
6.25W

Output Current
3A

Case Connection
ISOLATED

Forward Current
3A

Max Surge Current
125A

Application
EFFICIENCY

Forward Voltage
1.7V

Max Reverse Voltage (DC)
600V

Average Rectified Current
3A

Number of Phases
1

Reverse Recovery Time
75 ns

Peak Reverse Current
5?A

Max Repetitive Reverse Voltage (Vrrm)
600V

Peak Non-Repetitive Surge Current
125A

Reverse Voltage
600V

Max Forward Surge Current (Ifsm)
125A

Recovery Time
75 ns

Diameter
5.6mm

Height
9.5mm

Radiation Hardening
No

Download datasheets and manufacturer documentation for ON Semiconductor EGP30J.

EGP30J Overview

An appropriate reverse voltage is 600V.Devices with this rating have an average rectified current of 3A volts.An unwanted side effect of this electronic or electrical device is that it produces 6.25W heat.3A is the maximum value of forward current.The fuse's current rating is 3A, which is the maximum current the fuse can handle for an indefinite time without deteriorating too much.There can be no surge current above 125A.In some cases, the device could display a value of 75pF depending on the capacitance.Using the data chart, the peak reverse is 5?A in the datasheets.

EGP30J Features

an average rectified current of 3A volts
a current rating of 3A
the peak reverse is 5?A

EGP30J Applications

There are a lot of ON Semiconductor
EGP30J applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
