Manufacturer No:

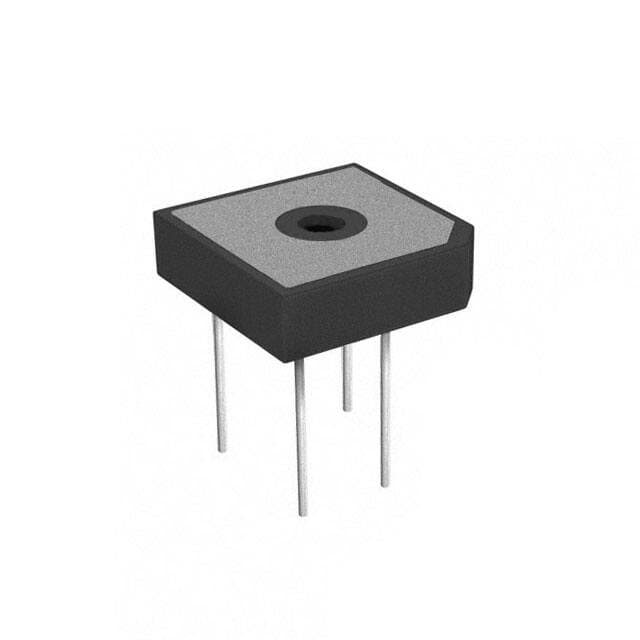

DBA100G

Manufacturer:

ON Semiconductor

Package:

4-Square, GBPC-W

Description:

Single Phase Bridge Rectifier Standard Through Hole 150°C TJ 10?A @ 600V 1.05V @ 5A 4-Square, GBPC-W Tray

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DBA100G information

ON Semiconductor DBA100G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor DBA100G.

  • Type
  • Parameter
  • Lifecycle Status
  • LIFETIME (Last Updated: 1 week ago)
  • Mount
  • Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • 4-Square, GBPC-W
  • Number of Pins
  • 4
  • Operating Temperature
  • 150°C TJ
  • Packaging
  • Tray
  • Published
  • 2009
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Silver (Ag)
  • Subcategory
  • Bridge Rectifier Diodes
  • Technology
  • Standard
  • Peak Reflow Temperature (Cel)
  • NOT SPECIFIED
  • Time@Peak Reflow Temperature-Max (s)
  • NOT SPECIFIED
  • Number of Elements
  • 1
  • Element Configuration
  • Single
  • Diode Type
  • Single Phase
  • Current - Reverse Leakage @ Vr
  • 10?A @ 600V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.05V @ 5A
  • Output Current-Max
  • 3.7A
  • Forward Voltage
  • 1.05V
  • Peak Reverse Current
  • 10?A
  • Max Repetitive Reverse Voltage (Vrrm)
  • 600V
  • Peak Non-Repetitive Surge Current
  • 200A
  • Max Forward Surge Current (Ifsm)
  • 200A
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for ON Semiconductor DBA100G.

Datasheets:

ReachStatement:

DBA100G Overview


Basically, it's an electronic component that comes in a 4-Square, GBPC-W package.This device is mounted in the Through Hole position.Keeping it at 150°C TJ ensures its normal operation.There is a maximum output voltage of 3.7A that it can support.In order to power this device, there is a reverse voltage peak of 10?A.

DBA100G Features


4-Square, GBPC-W package
operating at a temperature of 150°C TJ
the maximum output voltage of 3.7A
peak reverse voltage of 10?A
a reverse voltage peak of 10?A


DBA100G Applications


There are a lot of ON Semiconductor
DBA100G applications of bridge rectifiers.


  • Military and other high-reliability applications
  • High forward surge current capability
  • Low thermal resistance
  • Extremely robust construction
  • Fuse-in-glass diodes design
  • Electrically isolated aluminum case
  • Motor controls ? Low Voltage and Medium Voltage converters
  • SCR power bridges for solid state starters
  • SCR and diode based input rectifiers
  • Crowbar systems for motor drives
