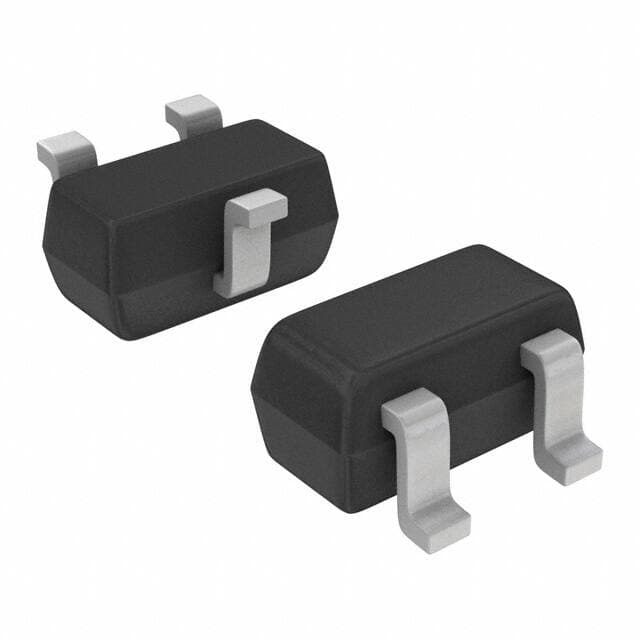

ON Semiconductor DAP222
ON Semiconductor DAP222

ON Semiconductor DAP222

Manufacturer No:

DAP222

Manufacturer:

ON Semiconductor

Package:

SC-75, SOT-416

Description:

Standard Rectifier Diode 1 Pair Common Anode Small Signal =< 200mA (Io), Any Speed 150°C Max 100mA 80V-DC SC-75, SOT-416 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DAP222 information

ON Semiconductor DAP222 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor DAP222.

  • Type
  • Parameter
  • Lifecycle Status
  • LAST SHIPMENTS (Last Updated: 1 week ago)
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-75, SOT-416
  • Number of Pins
  • 3
  • Supplier Device Package
  • SC-75, SOT-416
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2005
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -55°C
  • Capacitance
  • 3.5pF
  • Voltage - Rated DC
  • 80V
  • Max Power Dissipation
  • 150mW
  • Current Rating
  • 100mA
  • Base Part Number
  • DAP222
  • Element Configuration
  • Common Anode
  • Speed
  • Small Signal =< 200mA (Io), Any Speed
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 100nA @ 70V
  • Voltage - Forward (Vf) (Max) @ If
  • 1.2V @ 100mA
  • Max Reverse Leakage Current
  • 100nA
  • Operating Temperature - Junction
  • 150°C Max
  • Max Surge Current
  • 2A
  • Current - Average Rectified (Io)
  • 100mA DC
  • Max Reverse Voltage (DC)
  • 80V
  • Average Rectified Current
  • 100mA
  • Reverse Recovery Time
  • 10 ns
  • Diode Configuration
  • 1 Pair Common Anode
  • Recovery Time
  • 4 ns
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Contains Lead

Download datasheets and manufacturer documentation for ON Semiconductor DAP222.

Datasheets:

PCN Obsolescence/ EOL:

ReachStatement:

DAP222 Overview


A surge current should be monitored and should not exceed 2A.Parts can be powered by currents of 100mA.Array has a capacArrayance of approximately 3.5pF farads.When reverse biased, its maximum reverse leakage current is 100nA, which is the current coming from that semiconductor device.A device that generates the greatest amount of 150mW heat (energy loss).
