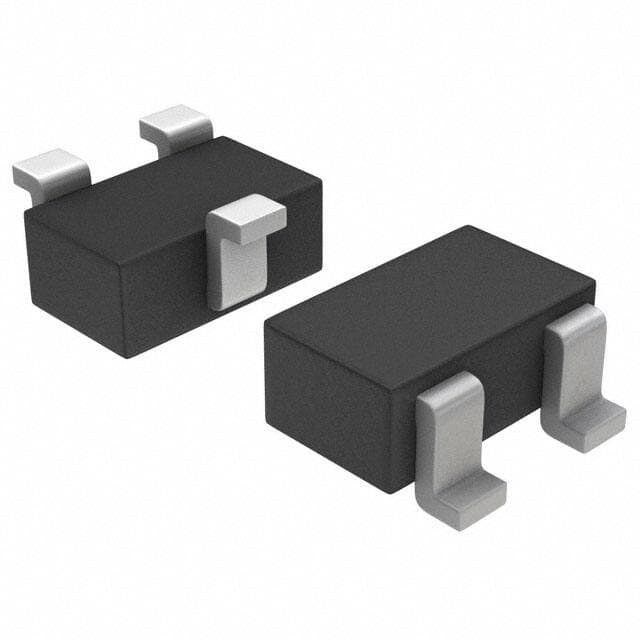

ON Semiconductor BAV99WT1G
ON Semiconductor BAV99WT1G

ON Semiconductor BAV99WT1G

Manufacturer No:

BAV99WT1G

Manufacturer:

ON Semiconductor

Package:

SC-70, SOT-323

Description:

Standard Rectifier Diode 1 Pair Series Connection Fast Recovery =< 500ns, > 200mA (Io) -65°C~150°C 200mA 70V-DC SC-70, SOT-323 Surface Mount

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :100

Price not displayed? Please send an RFQ, and we will respond immediately.

BAV99WT1G information

ON Semiconductor BAV99WT1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BAV99WT1G.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 3 days ago)
  • Factory Lead Time
  • 4 Weeks
  • Contact Plating
  • Tin
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • SC-70, SOT-323
  • Number of Pins
  • 3
  • Weight
  • 30mg
  • Diode Element Material
  • SILICON
  • Number of Elements
  • 2
  • Packaging
  • Cut Tape (CT)
  • Published
  • 2005
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 3
  • Termination
  • SMD/SMT
  • ECCN Code
  • EAR99
  • Max Operating Temperature
  • 150°C
  • Min Operating Temperature
  • -65°C
  • HTS Code
  • 8541.10.00.70
  • Voltage - Rated DC
  • 70V
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 260
  • Current Rating
  • 215mA
  • Time@Peak Reflow Temperature-Max (s)
  • 40
  • Base Part Number
  • BAV99W
  • Pin Count
  • 3
  • Element Configuration
  • Common Cathode
  • Speed
  • Fast Recovery =< 500ns, > 200mA (Io)
  • Diode Type
  • Standard
  • Current - Reverse Leakage @ Vr
  • 2.5μA @ 70V
  • Power Dissipation
  • 300mW
  • Voltage - Forward (Vf) (Max) @ If
  • 1.25V @ 150mA
  • Forward Current
  • 200mA
  • Max Reverse Leakage Current
  • 2.4μA
  • Operating Temperature - Junction
  • -65°C~150°C
  • Max Surge Current
  • 2A
  • Output Current-Max
  • 0.215A
  • Voltage - DC Reverse (Vr) (Max)
  • 100V
  • Current - Average Rectified (Io)
  • 215mA DC
  • Forward Voltage
  • 1V
  • Max Reverse Voltage (DC)
  • 70V
  • Average Rectified Current
  • 200mA
  • Reverse Recovery Time
  • 6 ns
  • Peak Reverse Current
  • 2.5μA

Download datasheets and manufacturer documentation for ON Semiconductor BAV99WT1G.

Datasheets:

Environmental Information:

PCN Obsolescence/ EOL:

PCN Design/Specification:

PCN Packaging:

Product Description:

The BAV99WT1G is a surface-mount, fast-recovery rectifier diode from ON Semiconductor, designed for use in a variety of applications. This diode features a silicon-based, standard rectifier configuration with a common cathode element configuration. It has a maximum average rectified current of 215mA and a maximum reverse voltage of 70V.

Features:

  • High Current Handling: The BAV99WT1G can handle high currents up to 215mA, making it suitable for applications requiring high power dissipation.
  • Fast Recovery Time: The diode features a fast recovery time of less than 500ns, ensuring efficient operation and minimizing power loss.
  • Surface Mount Package: The SC-70/SOT-323 package allows for easy surface mount assembly, reducing the overall size and weight of the application.
  • Lead-Free and RoHS Compliant: The diode is manufactured with lead-free materials and meets the RoHS3 compliance standards, ensuring environmental sustainability.

Applications:

  • Primary Applications:
  • Power supplies and converters
  • Motor control circuits
  • Audio and video equipment
  • Secondary Applications:
  • Telecommunications equipment
  • Medical devices
  • Industrial automation systems

Alternative Parts:

  • BAV99W: The base part number for the BAV99WT1G, which can be used as an alternative in applications where the additional features of the BAV99WT1G are not required.

Embedded Modules:

  • Various Power Supply Modules: The BAV99WT1G is often used in power supply modules, such as switching power supplies and DC-DC converters, due to its high current handling and fast recovery time.

FAQs:

Q: What is the maximum average rectified current of the BAV99WT1G? A: The maximum average rectified current is 215mA.

Q: What is the maximum reverse voltage of the BAV99WT1G? A: The maximum reverse voltage is 70V.

Q: Is the BAV99WT1G lead-free and RoHS compliant? A: Yes, the BAV99WT1G is manufactured with lead-free materials and meets the RoHS3 compliance standards.

Q: What is the recovery time of the BAV99WT1G? A: The recovery time is less than 500ns.

Q: What is the package type of the BAV99WT1G? A: The package type is SC-70/SOT-323, a surface-mount package.

Q: What is the operating temperature range of the BAV99WT1G? A: The operating temperature range is -65°C to 150°C.
