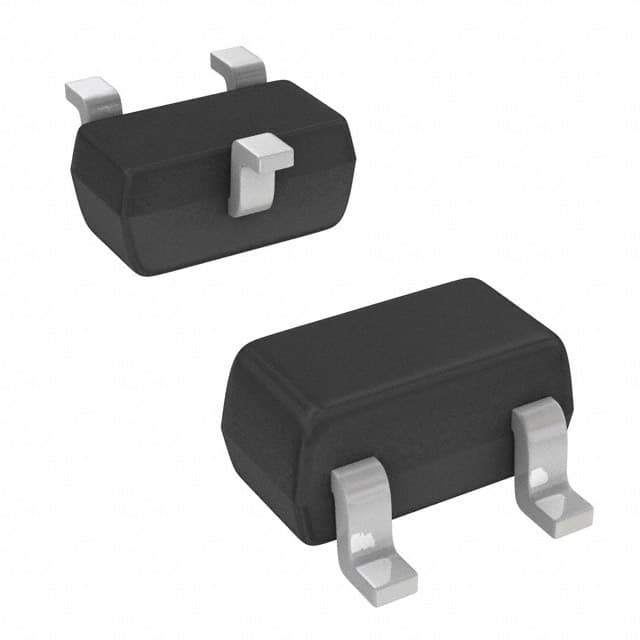

ON Semiconductor BAV70T

Manufacturer No:

BAV70T

Manufacturer:

ON Semiconductor

Package:

SOT-523

Description:

Standard Rectifier Diode 1 Pair Common Cathode Small Signal =< 200mA (Io), Any Speed 125Â°C Max 75mA 85V-DC SOT-523 Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BAV70T information

ON Semiconductor BAV70T technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor BAV70T.

Type
Parameter

Lifecycle Status
LAST SHIPMENTS (Last Updated: 3 days ago)

Factory Lead Time
2 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
SOT-523

Supplier Device Package
SOT-523

Weight
30mg

Packaging
Tape & Reel (TR)

Published
2003

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Element Configuration
Common Cathode

Speed
Small Signal =< 200mA (Io), Any Speed

Diode Type
Standard

Current - Reverse Leakage @ Vr
2?A @ 75V

Voltage - Forward (Vf) (Max) @ If
1V @ 50mA

Operating Temperature - Junction
125Â°C Max

Voltage - DC Reverse (Vr) (Max)
85V

Current - Average Rectified (Io)
75mA

Max Reverse Voltage (DC)
85V

Average Rectified Current
75mA

Reverse Recovery Time
4ns

Max Repetitive Reverse Voltage (Vrrm)
85V

Diode Configuration
1 Pair Common Cathode

Download datasheets and manufacturer documentation for ON Semiconductor BAV70T.

BAV70T Overview

BAV70T Features

BAV70T Applications

There are a lot of ON Semiconductor
BAV70T applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
